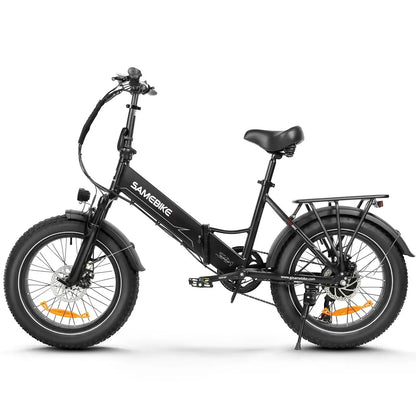

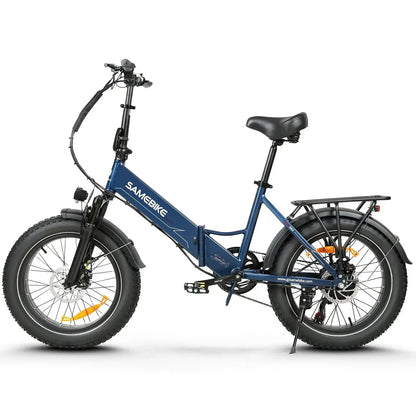

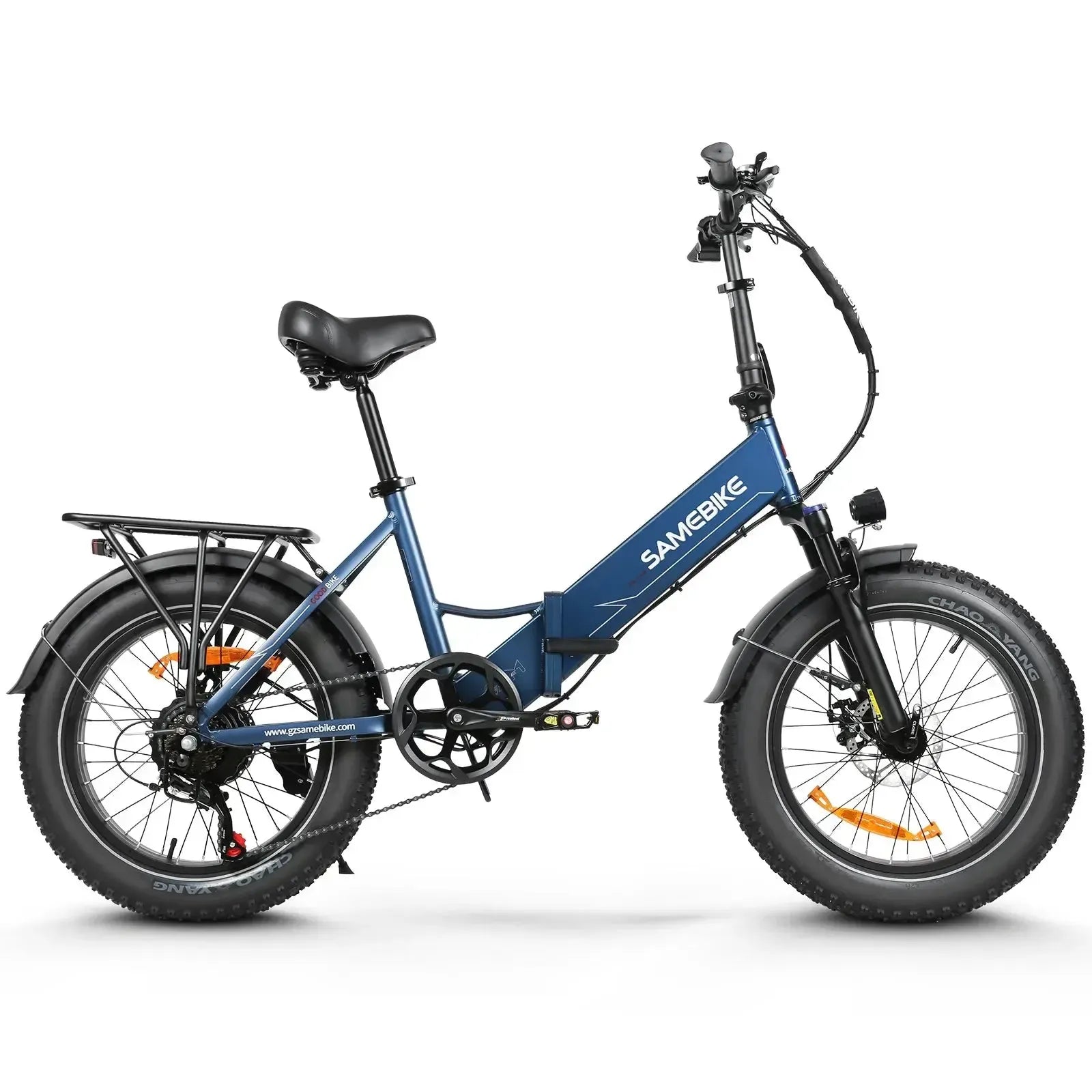

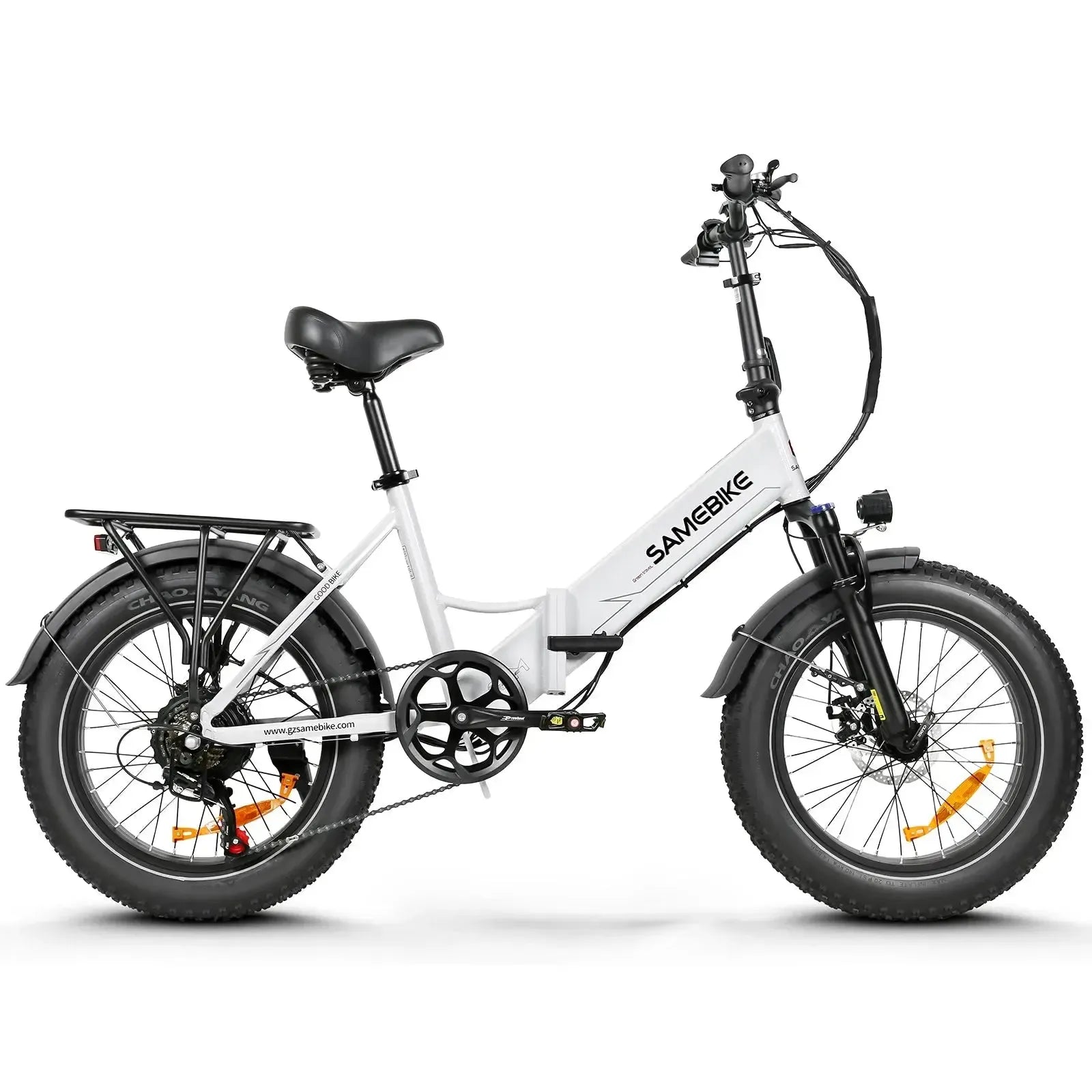

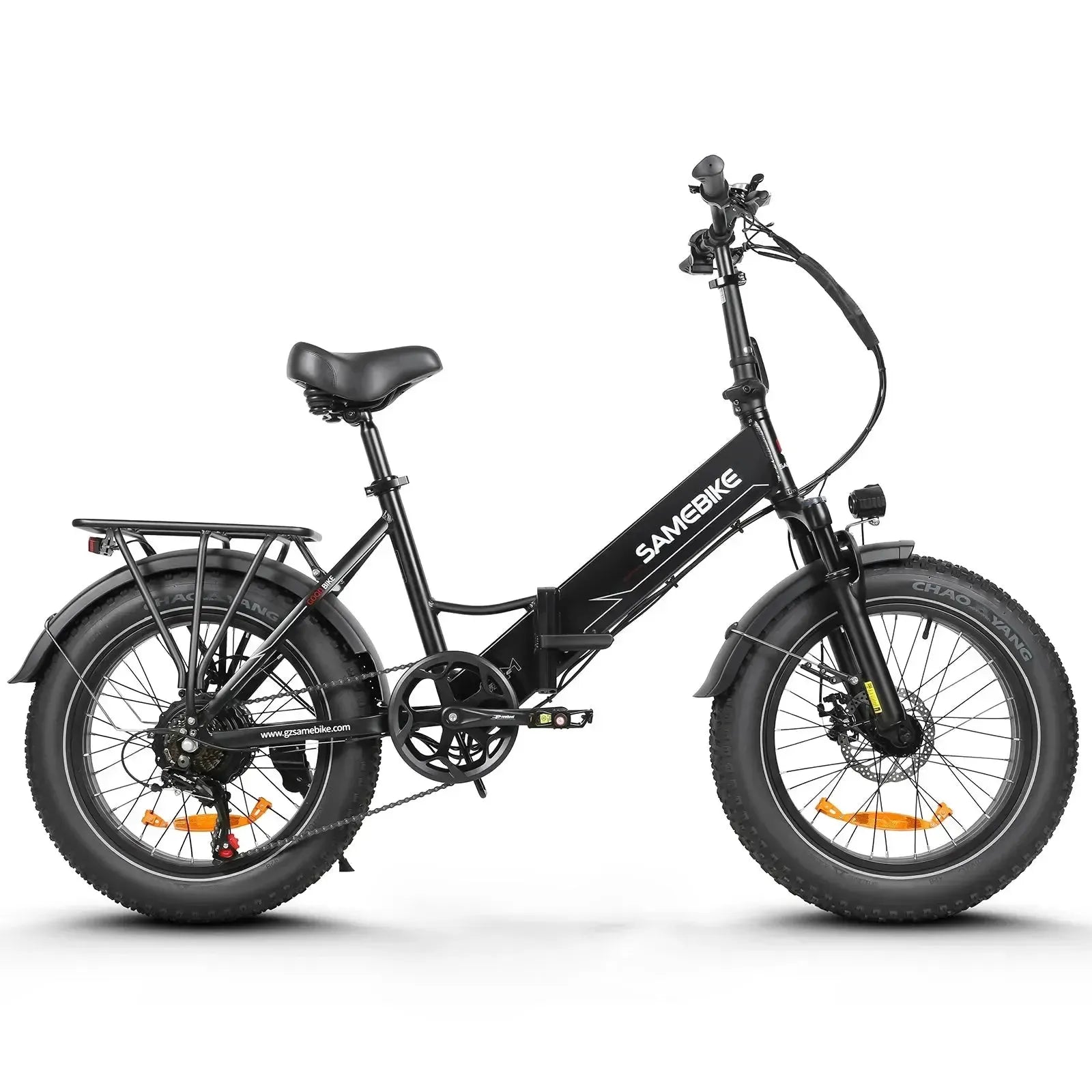

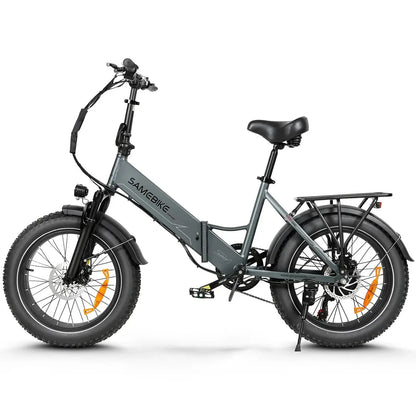

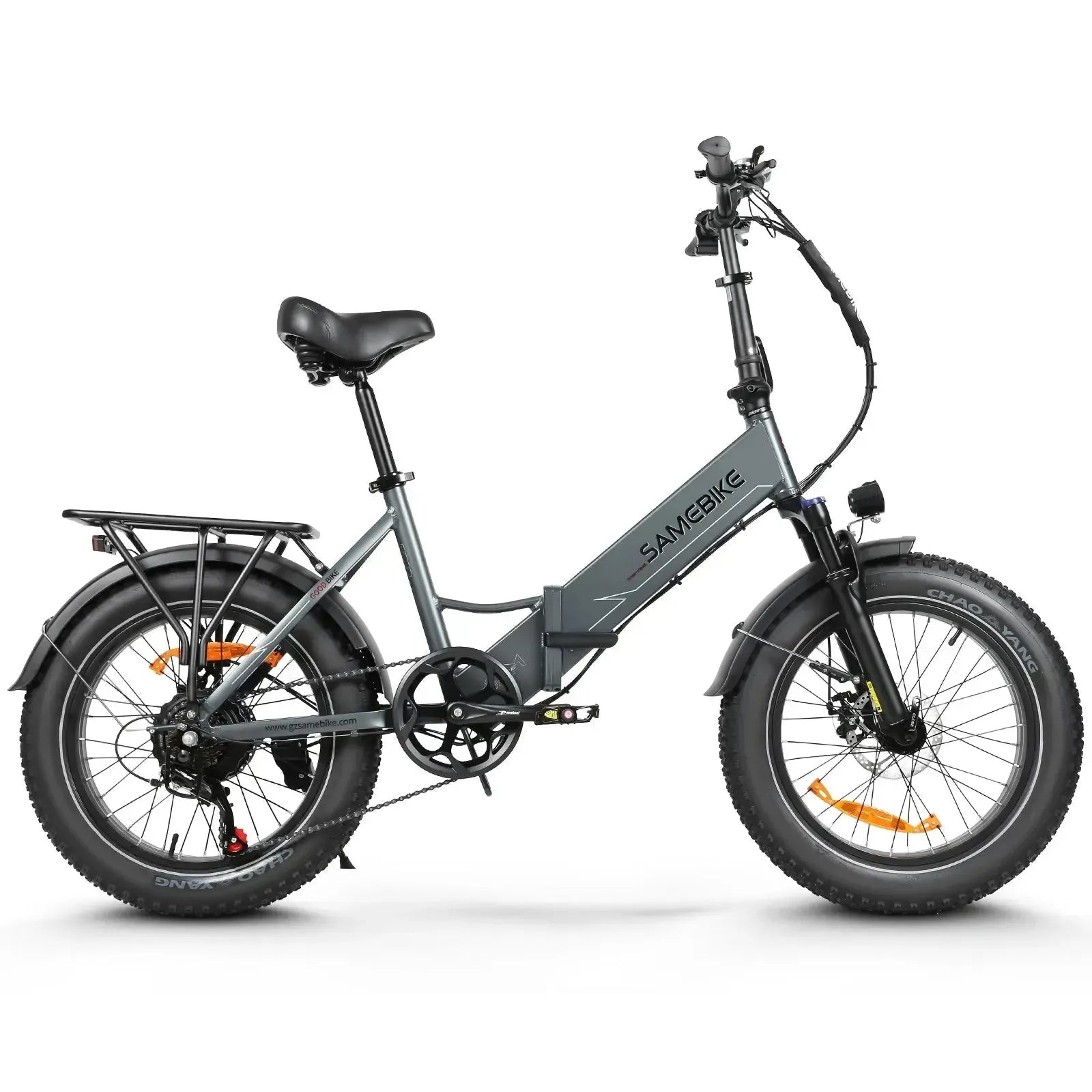

SAMEBIKE LOTDM200-II Step-Thru Electric Bike

General Details

• Model: SAMEBIKE LOTDM200-II
• Category: Step-Through Folding Electric Bike

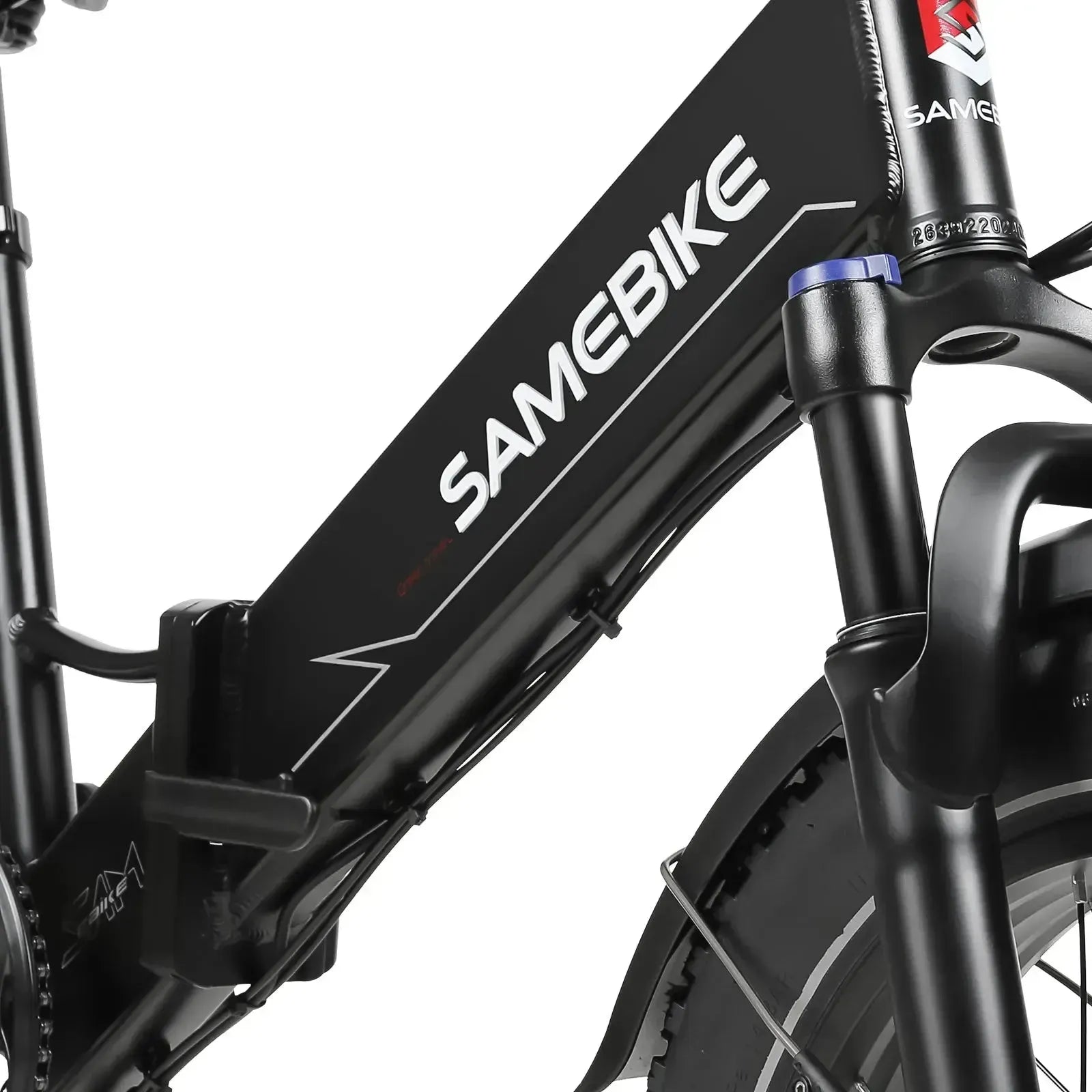

• Frame Design: Low-step, accessible frame for easy mounting and dismounting
• Frame Material: Reinforced aluminium alloy

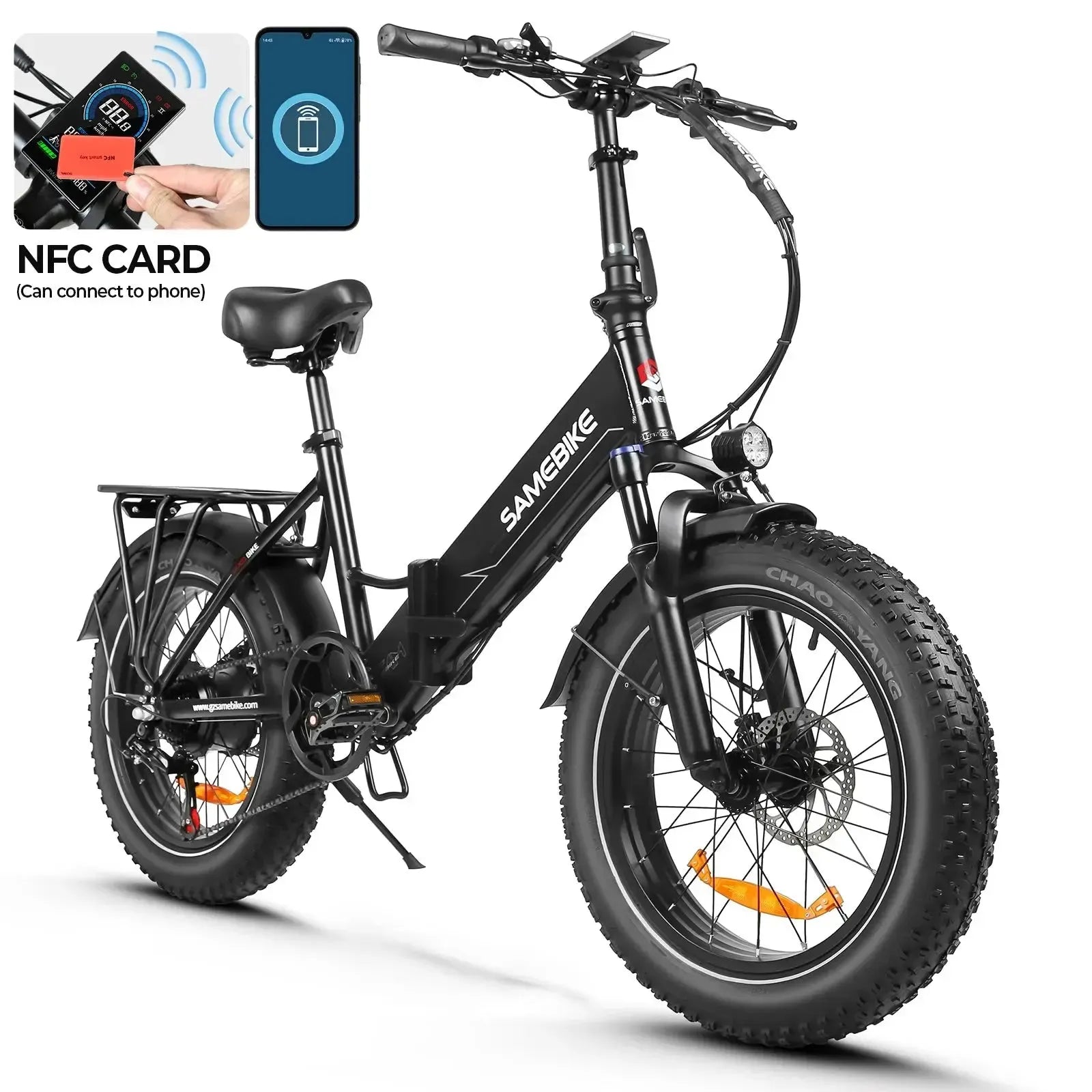

• Display: Center-mounted LCD screen (some variants include NFC smart unlock)

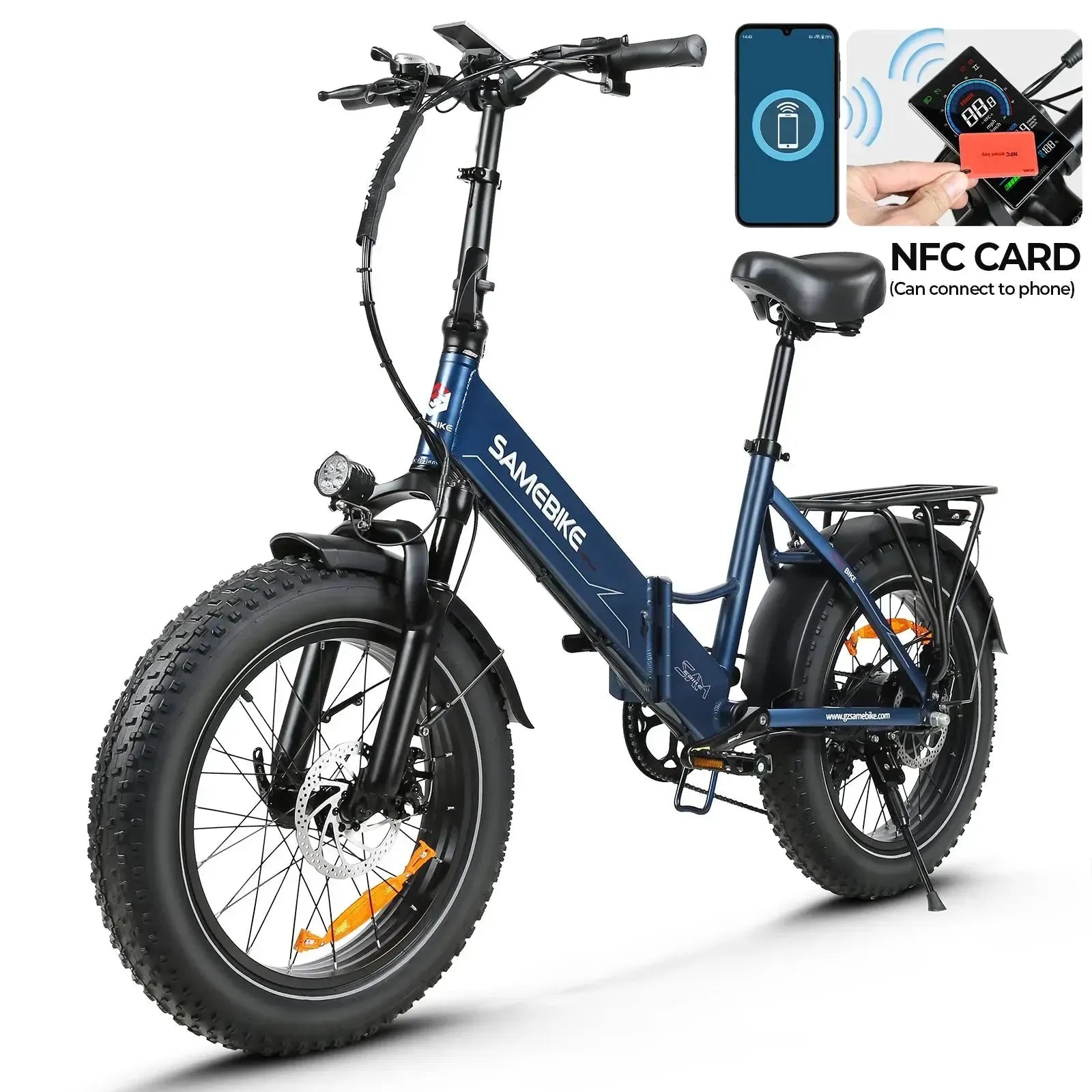

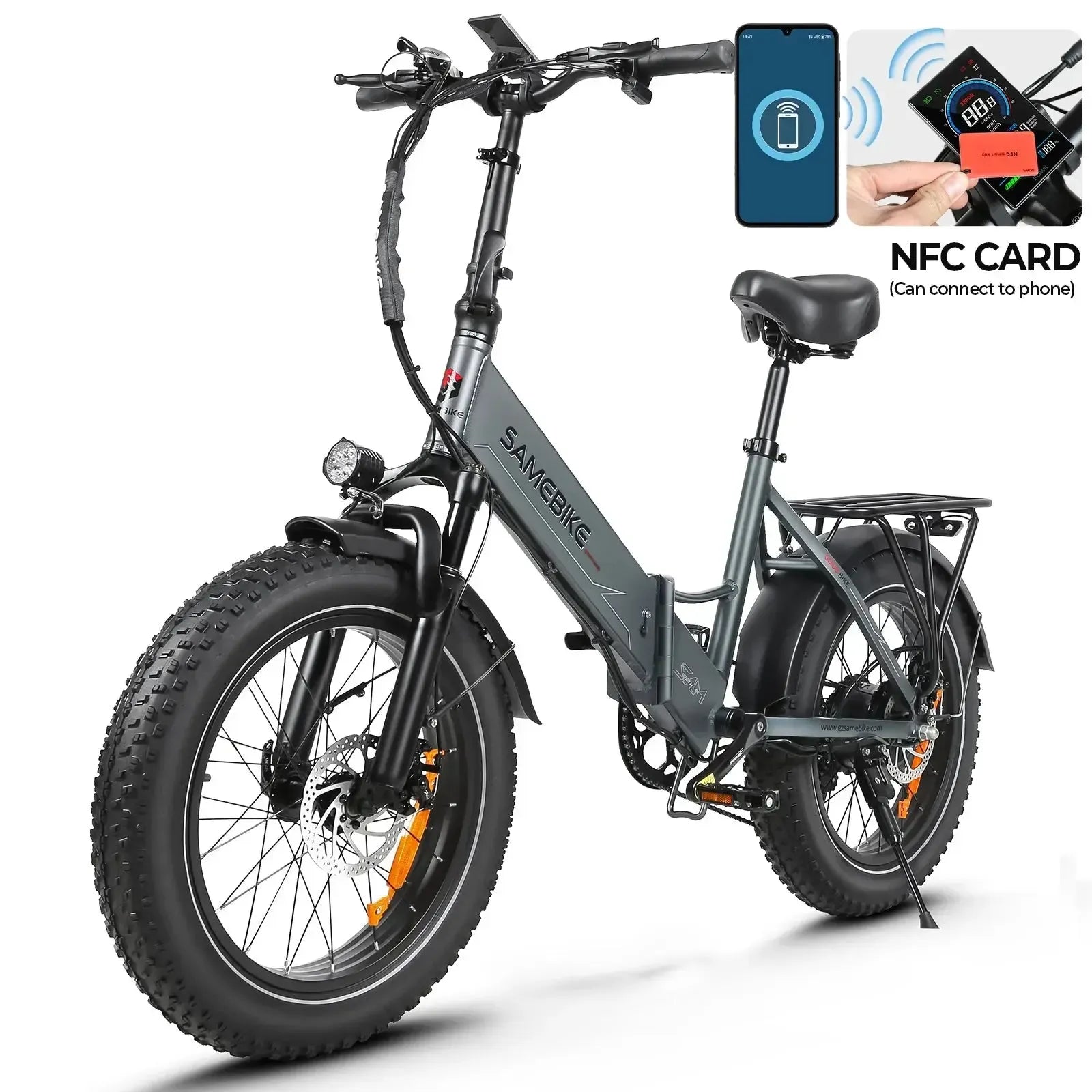

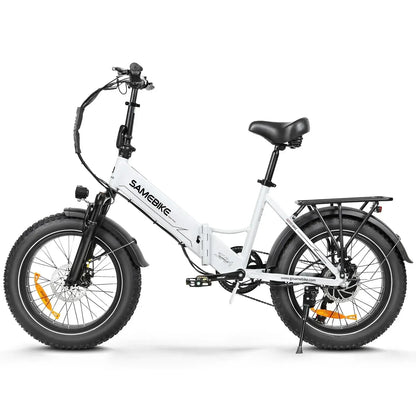

• Colors Available: Black, Grey, Blue, White
• Legal Classification: 25 km/h limit in EU mode; unlockable to higher speeds for private-road use
• Certifications: CE / EN15194 compliant

Performance & Battery

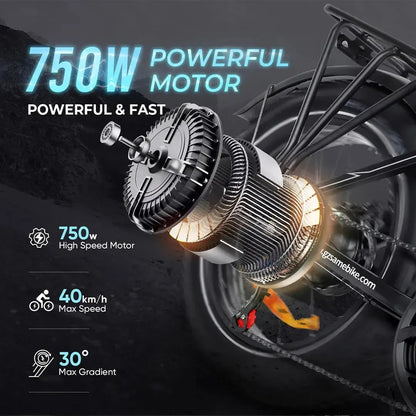

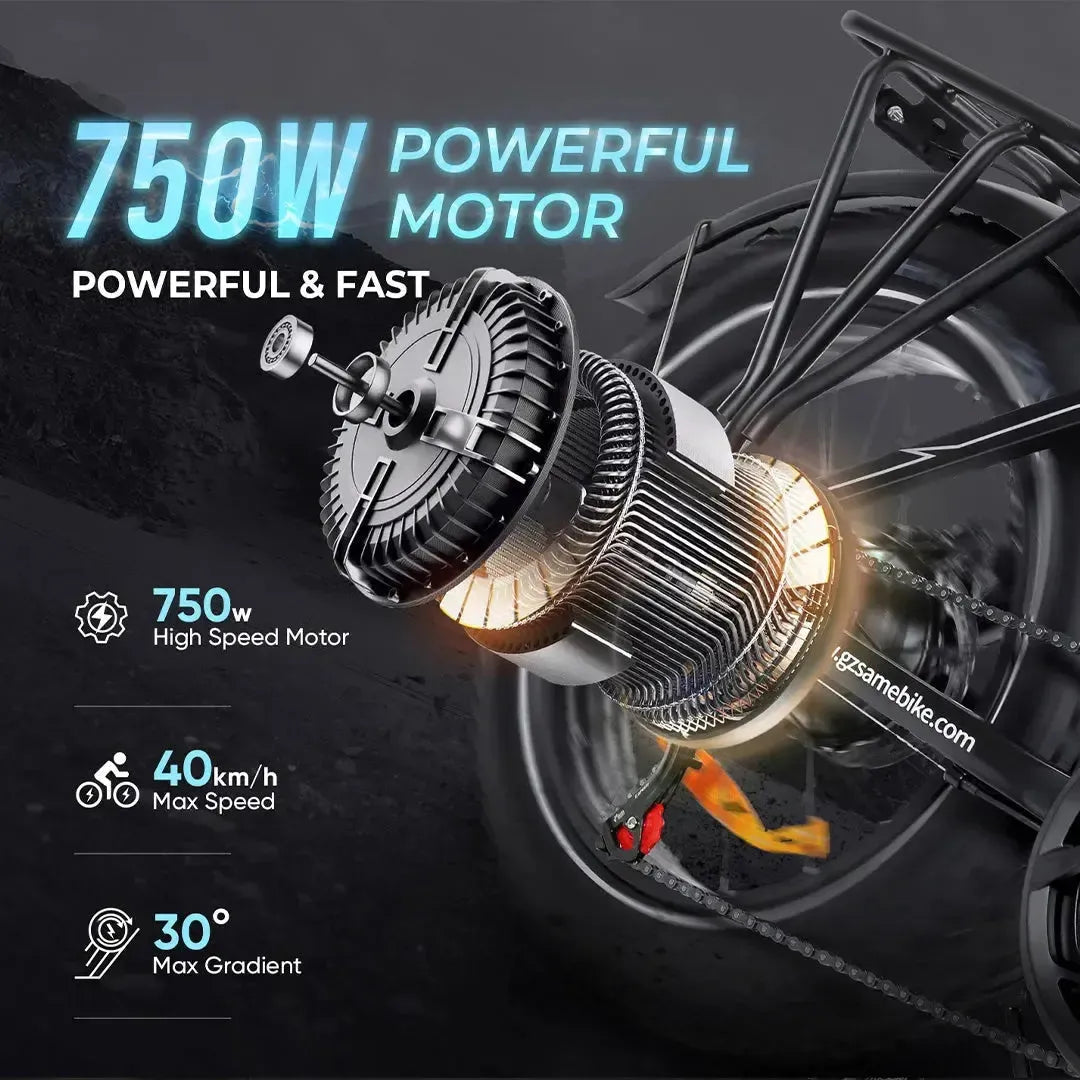

• Motor Type: Brushless rear hub motor
• Motor Power: 750W nominal (high-torque output)

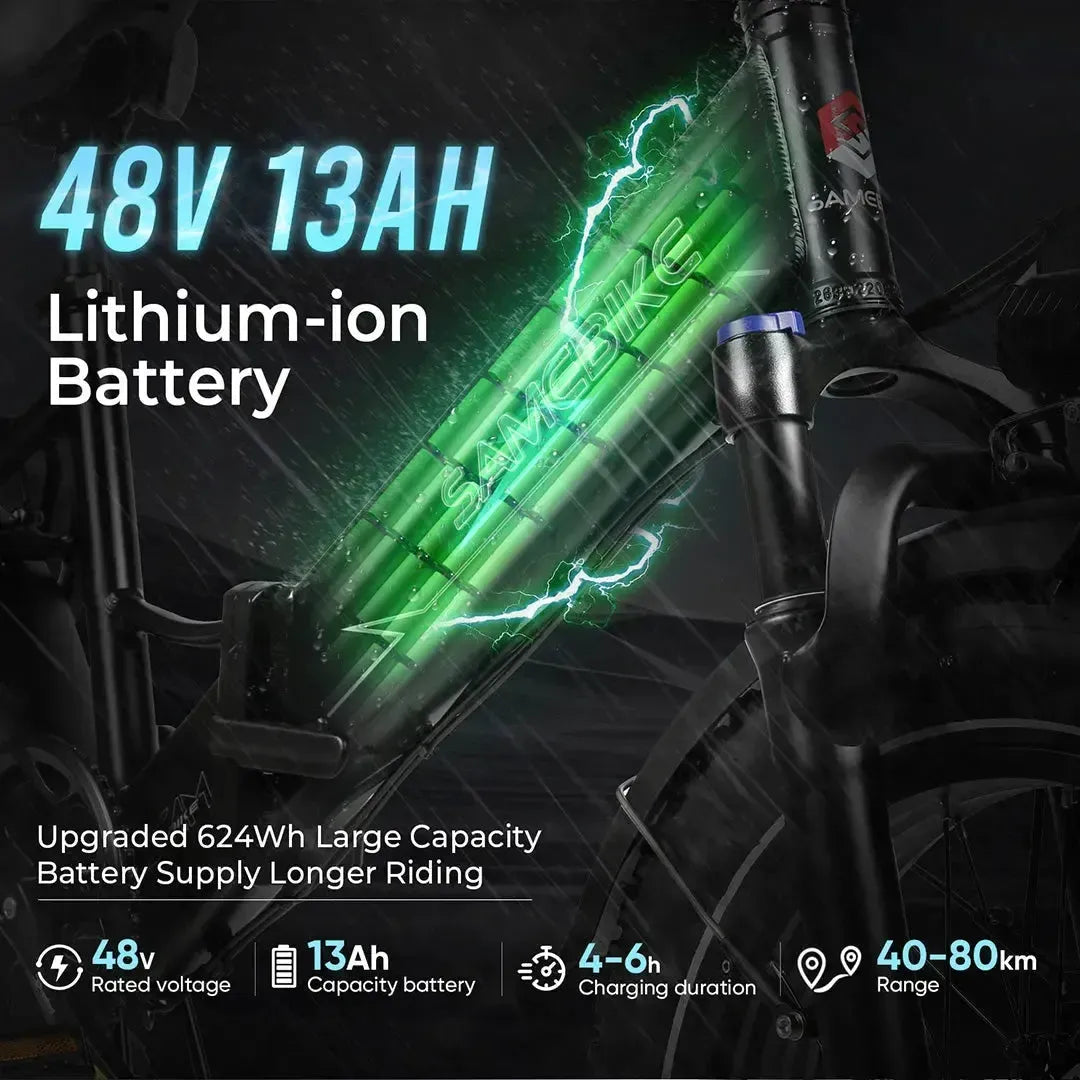

• Battery Voltage: 48V
• Battery Capacity: 13Ah removable lithium-ion pack
• Battery Chemistry: Quality 18650 cell configuration
• Range: ~40 km (pure electric) / up to ~80+ km (pedal assist)
• Charger Output: 54.6V 3A
• Charging Time: Approximately 5–7 hours (estimated)
• Assist Modes: Throttle, Pedal Assist, and mixed hybrid mode
• Battery Safety: Overcharge, short-circuit, and temperature protection

Speed & Motor

• Top Speed: 25 km/h (EU legal) / ~32 km/h (unlocked)
• Motor Type: High-efficiency brushless rear hub motor

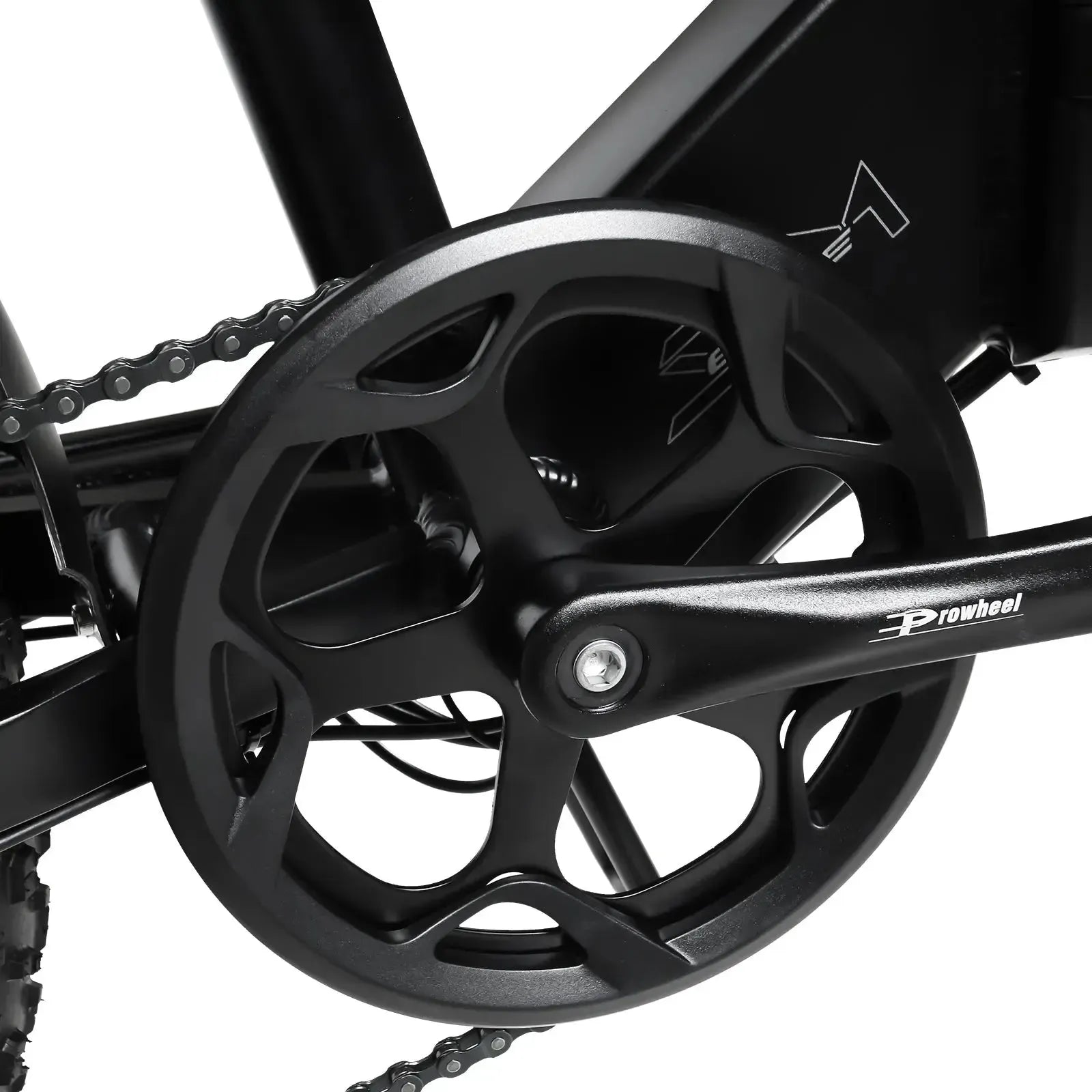

• Drive System: Chain drive
• Torque Output: Strong low-end torque for city slopes and inclines

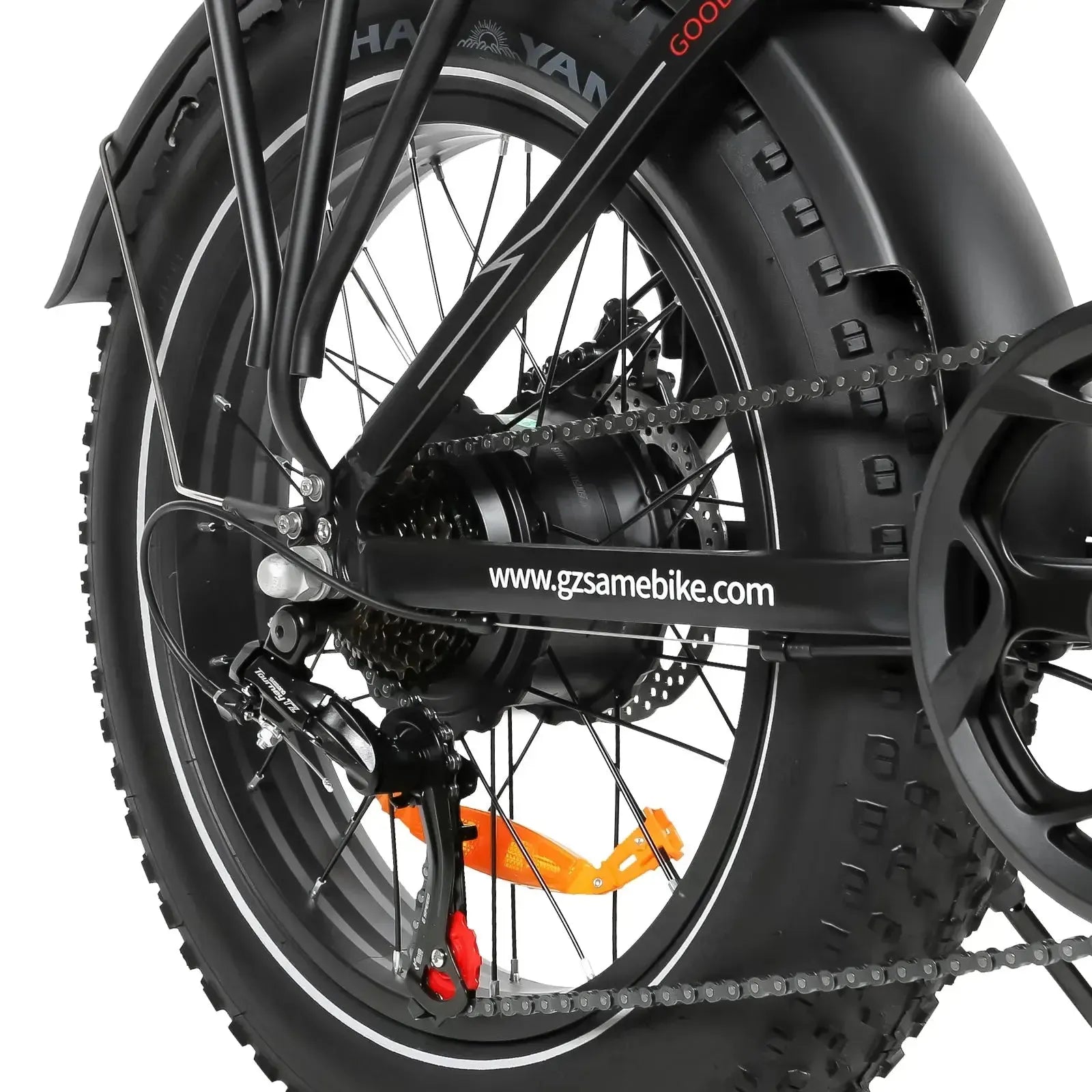

• Transmission: Shimano 7-speed gear system
• Modes: 3-speed adjustable assist levels with throttle override

Dimensions & Weight

• Overall Dimensions (Unfolded): ~175 × 63.5 × 126 cm

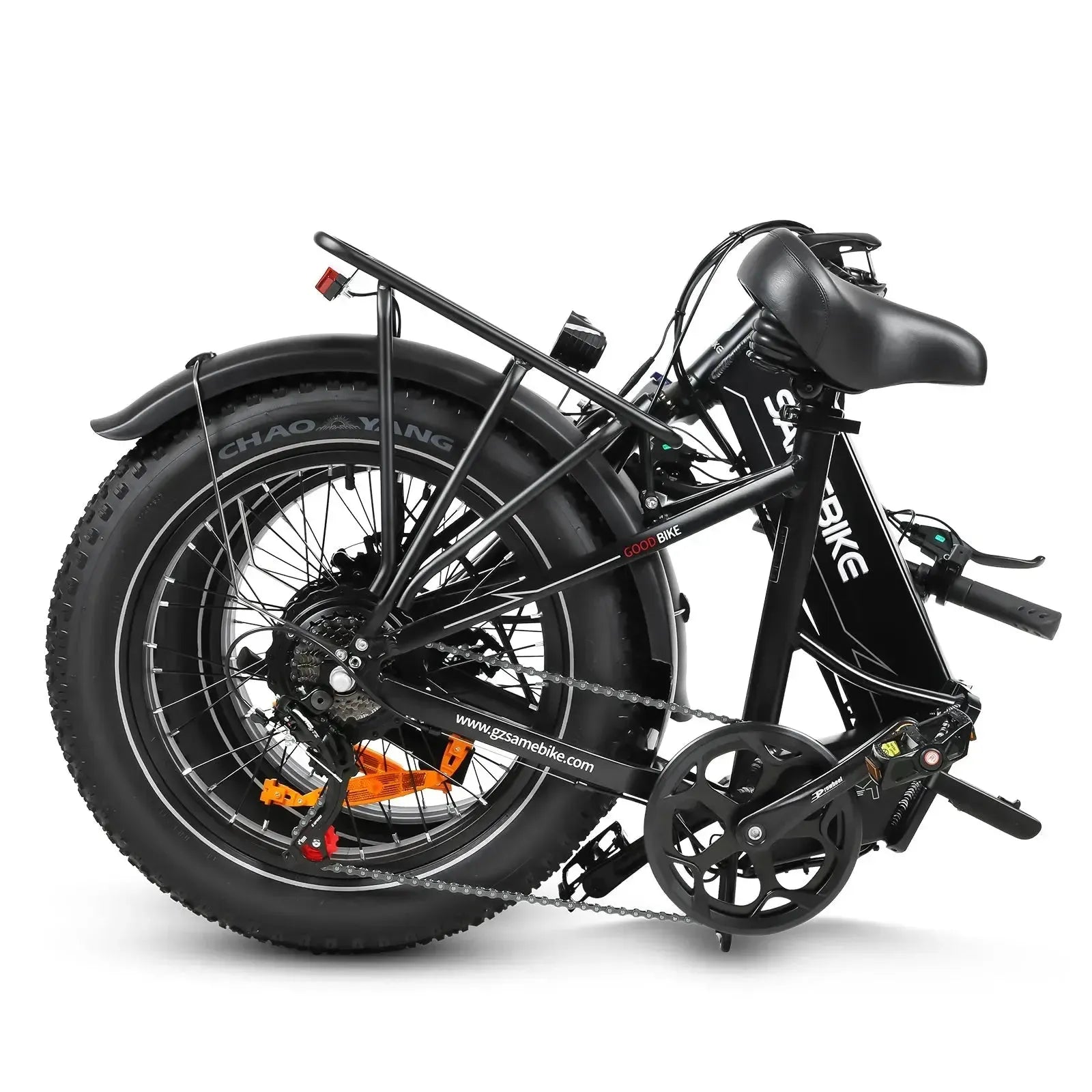

• Folding Mechanism: Double-folding compact design (handlebar + frame)
• Net Weight: Approx. 28 kg
• Battery Weight: ~3 kg (removable)
• Wheelbase: ~110 cm
• Recommended Rider Height: 150–190 cm

Load & Climbing

• Payload Capacity: Up to 120 kg
• Climbing Gradient: Approx. 20–25° incline
• Frame Strength: Step-through aluminium structure supports heavy riders
• Ride Comfort: Adjustable seat height and ergonomic handlebar setup

Tires, Brakes & Waterproofing

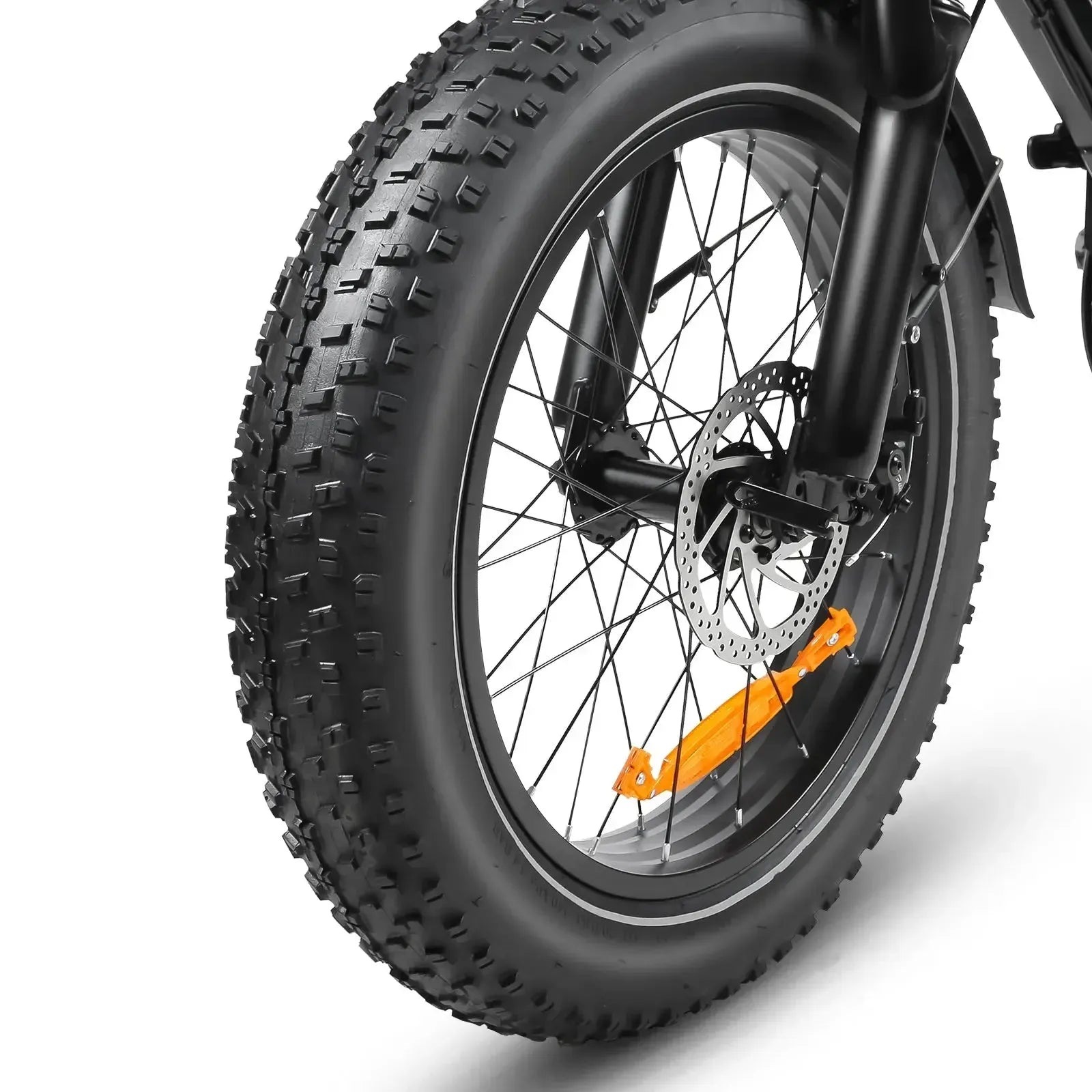

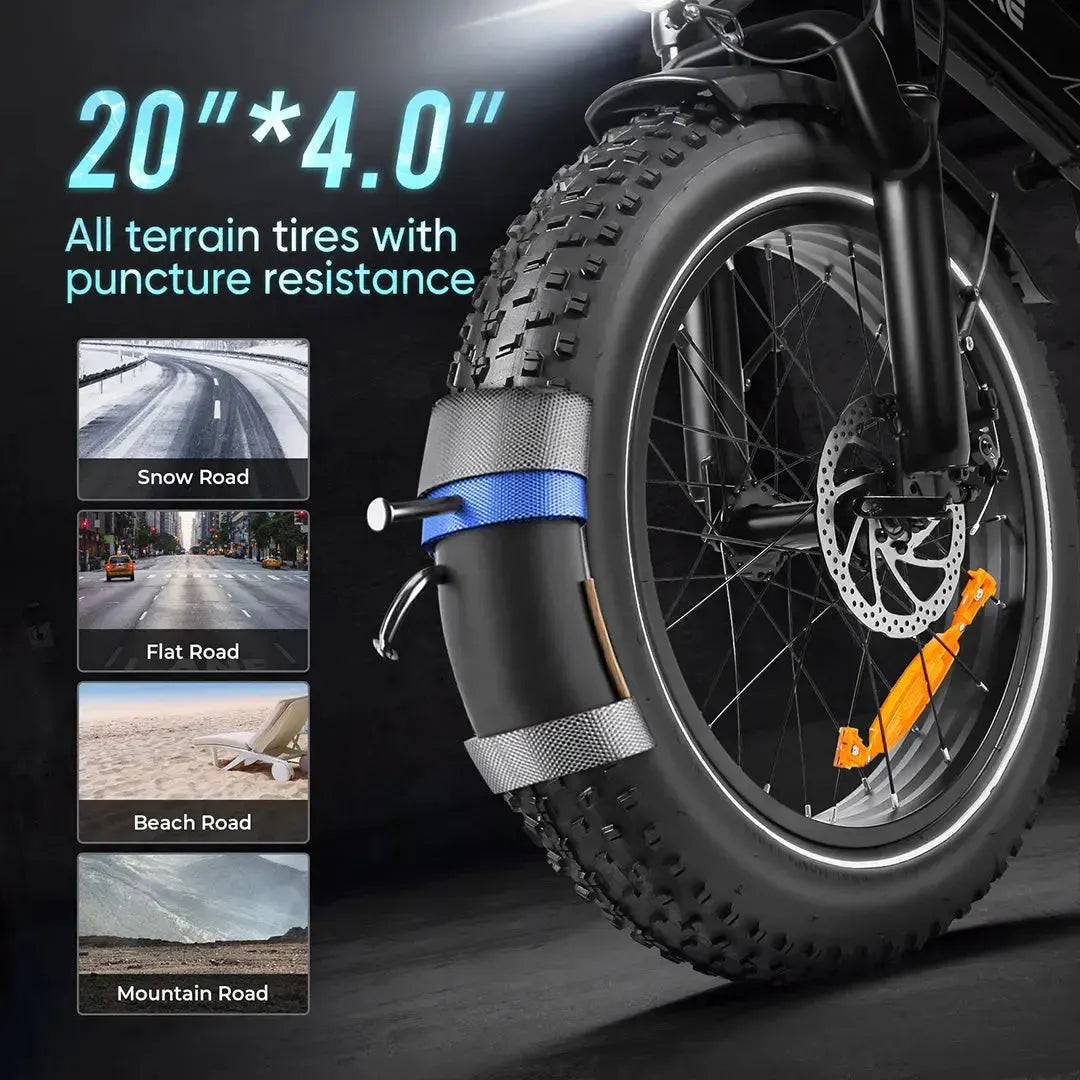

• Tire Size: 20″ × 4.0″
• Tire Type: All-terrain fat tires for enhanced grip and stability

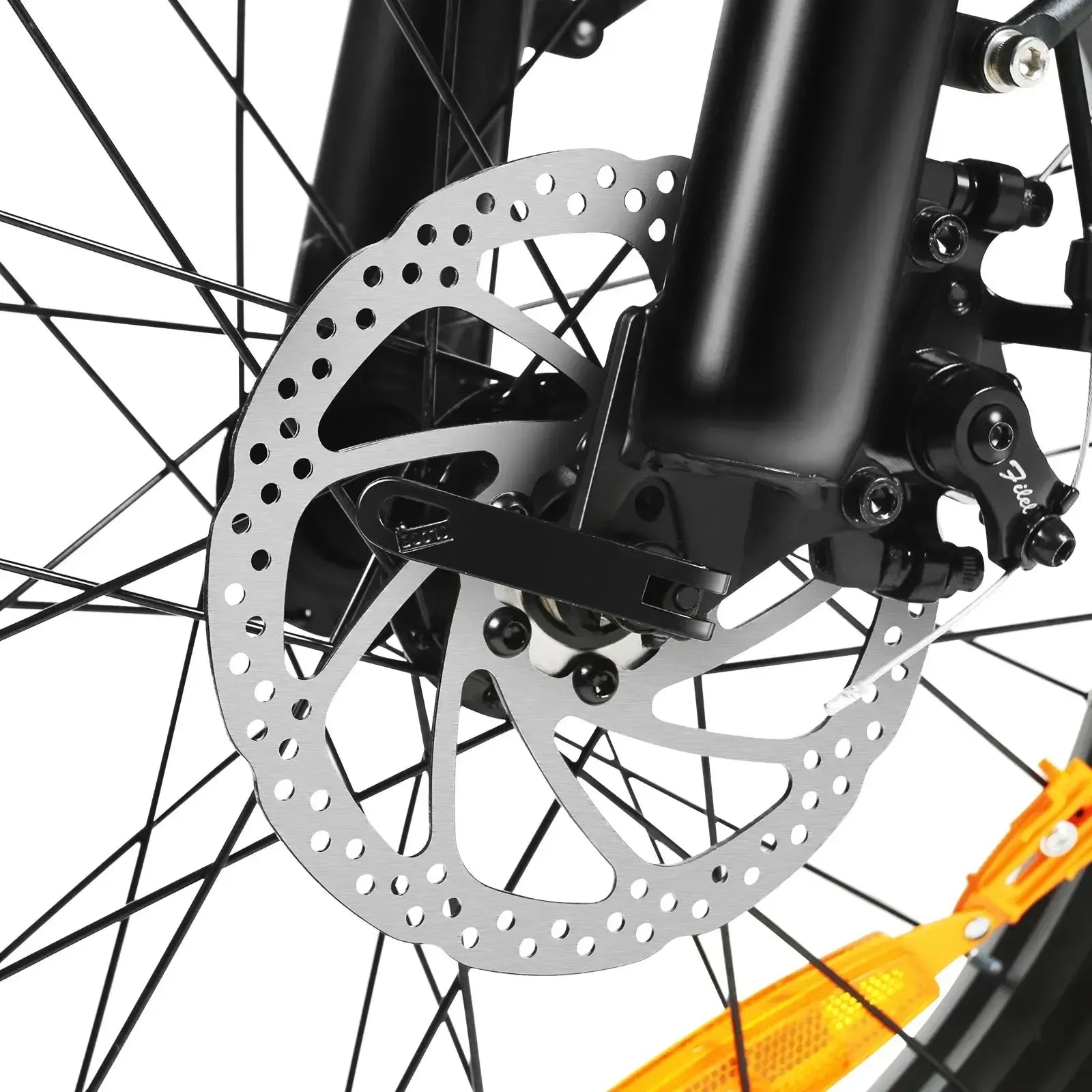

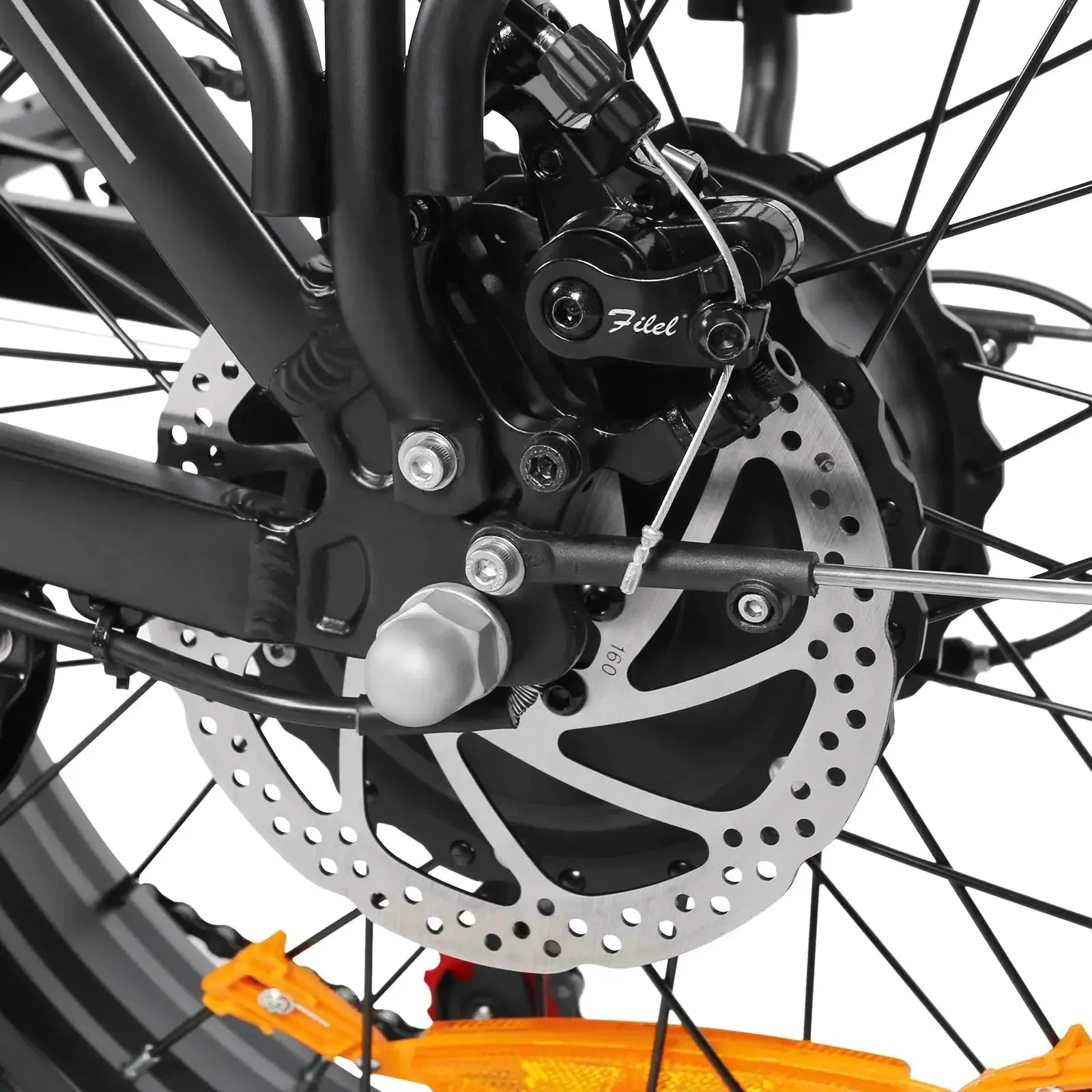

• Braking System: Front and rear mechanical disc brakes

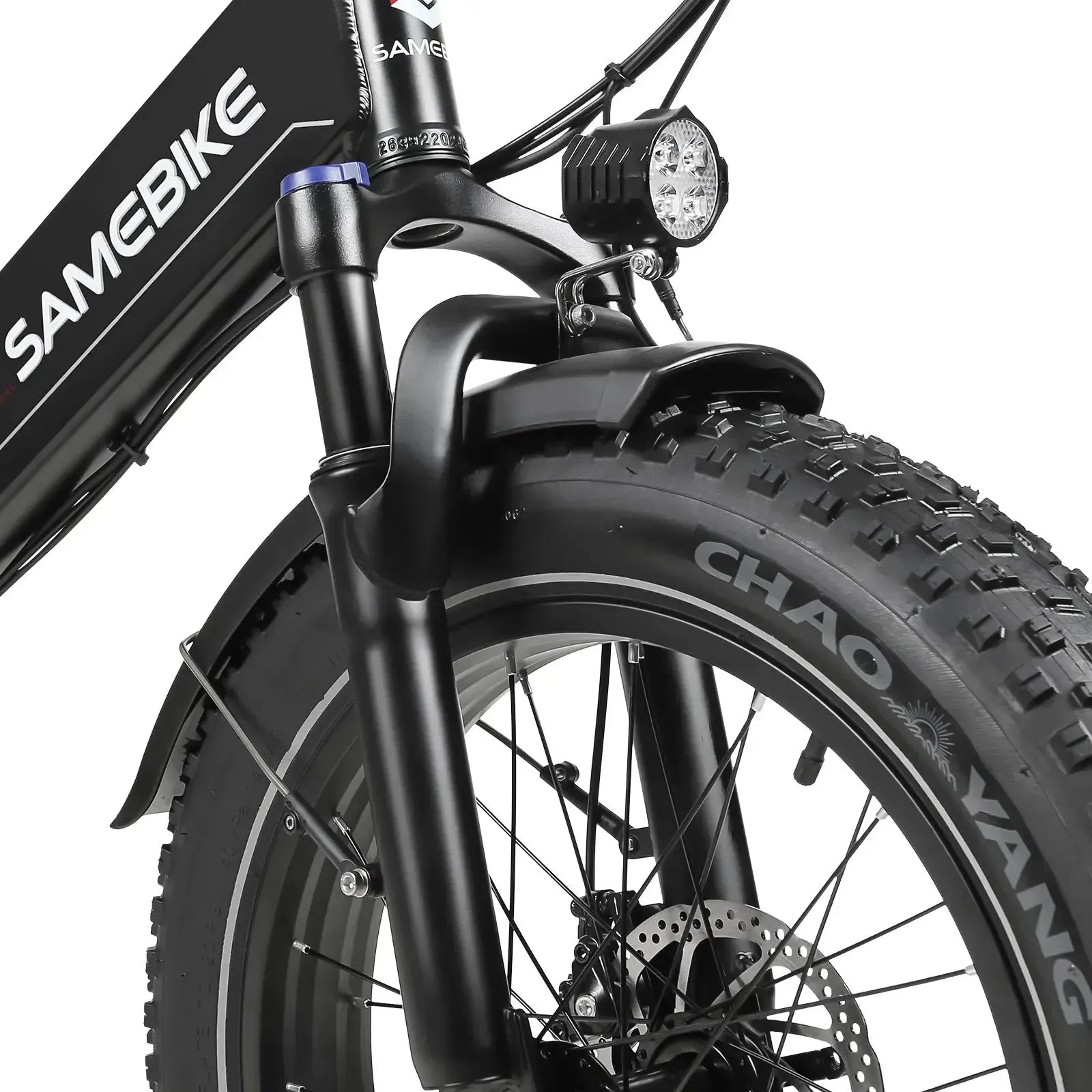

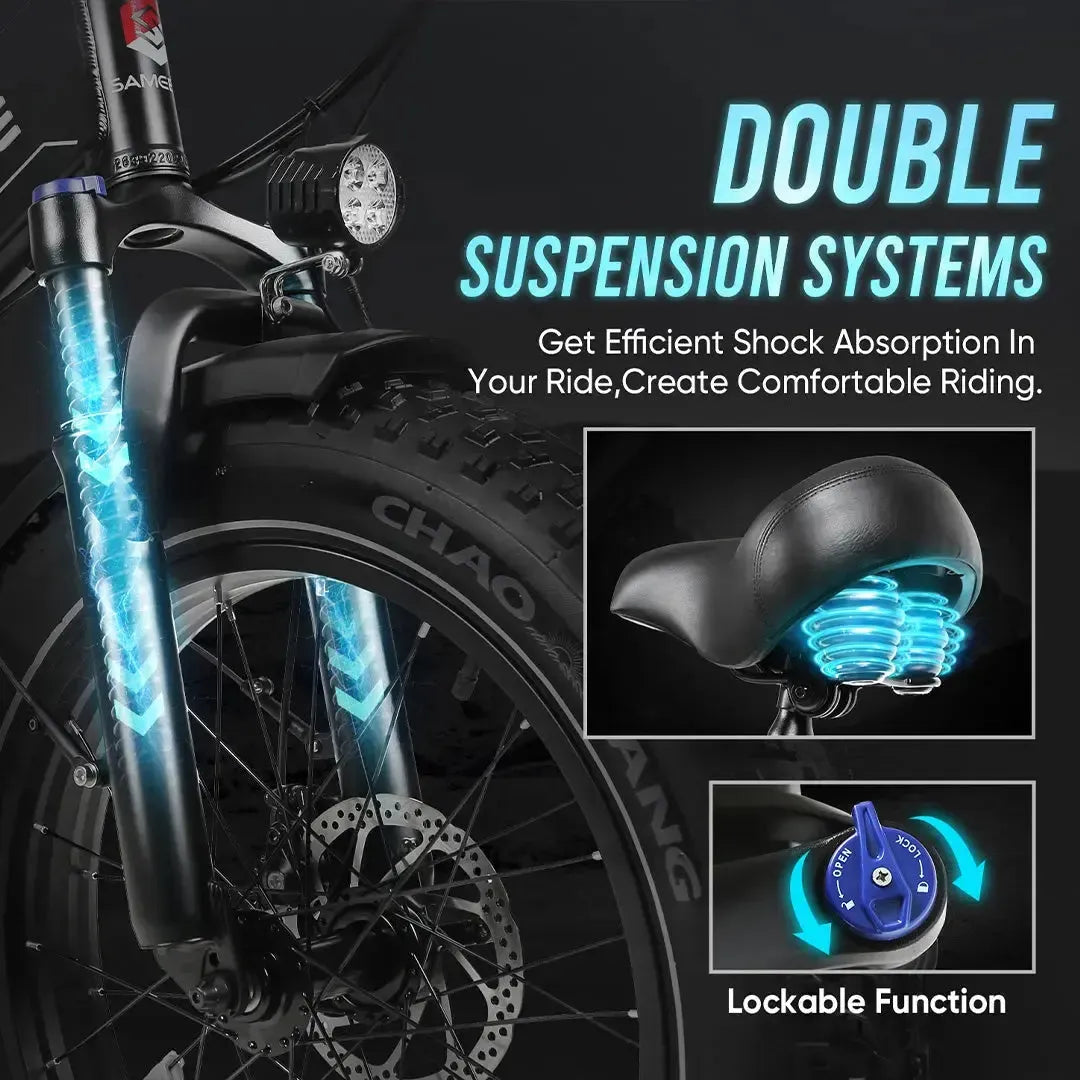

• Suspension: Front suspension fork
• Water Resistance: IPX4 splash-proof (suitable for wet weather riding)
• Rims: Spoked alloy rims for durability

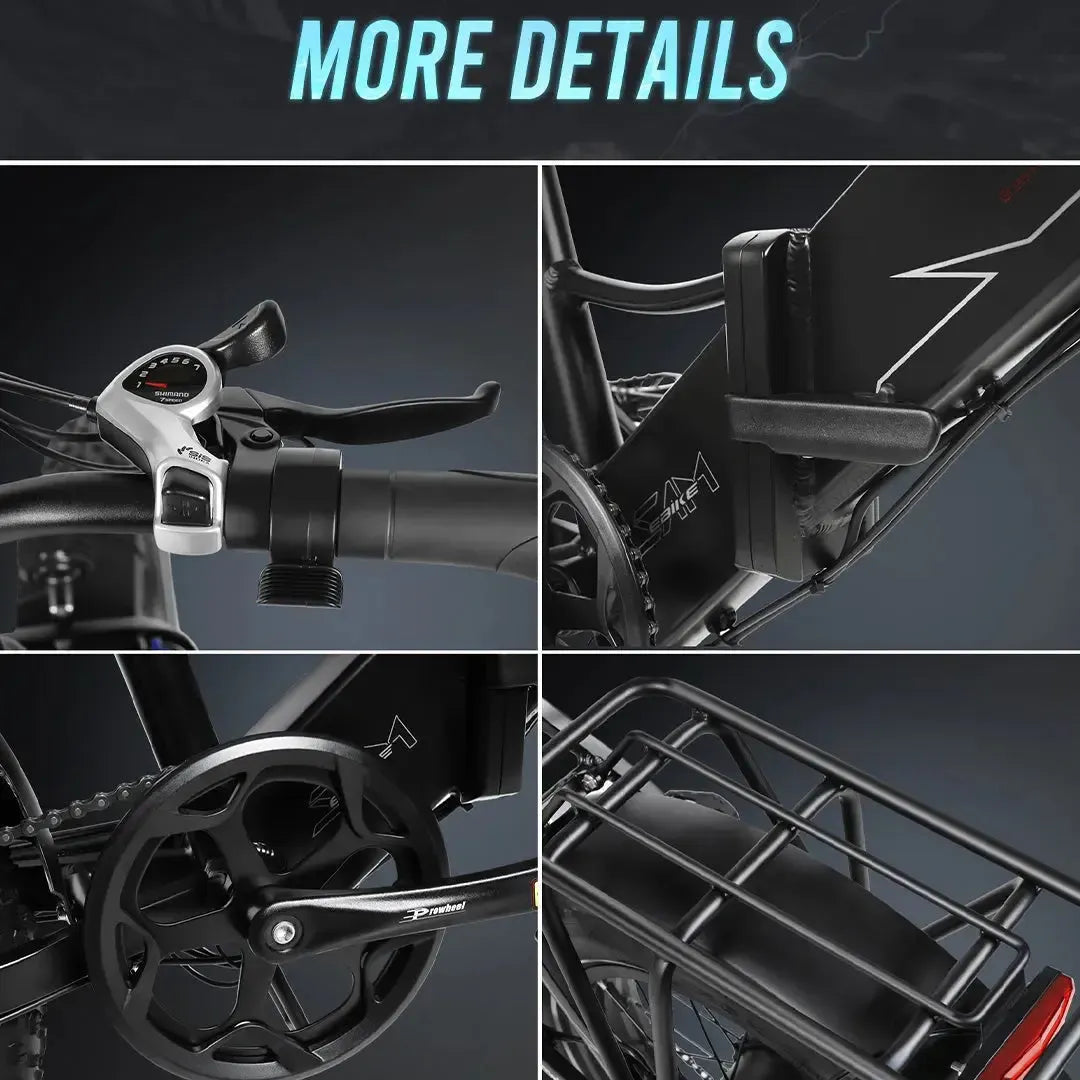

More Features

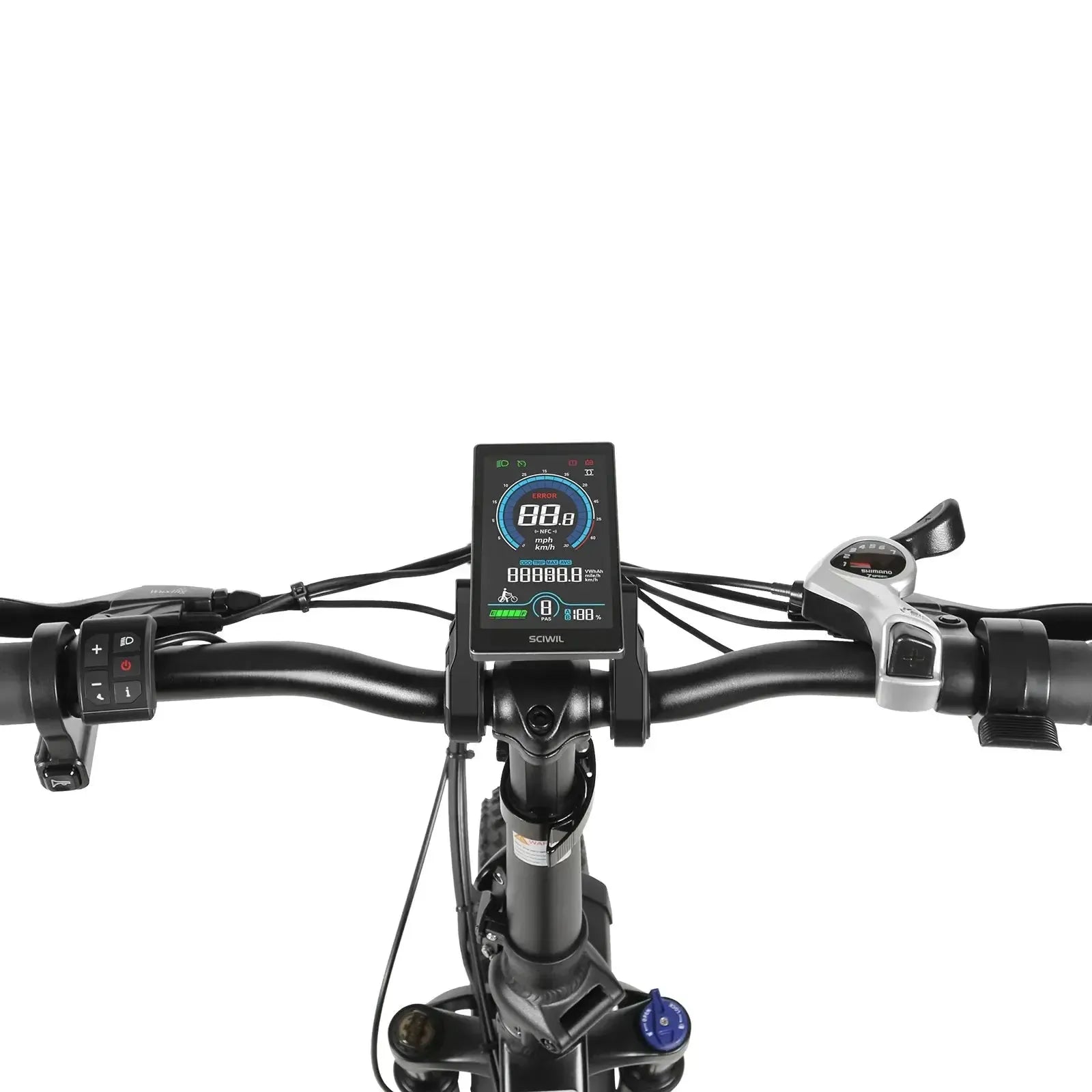

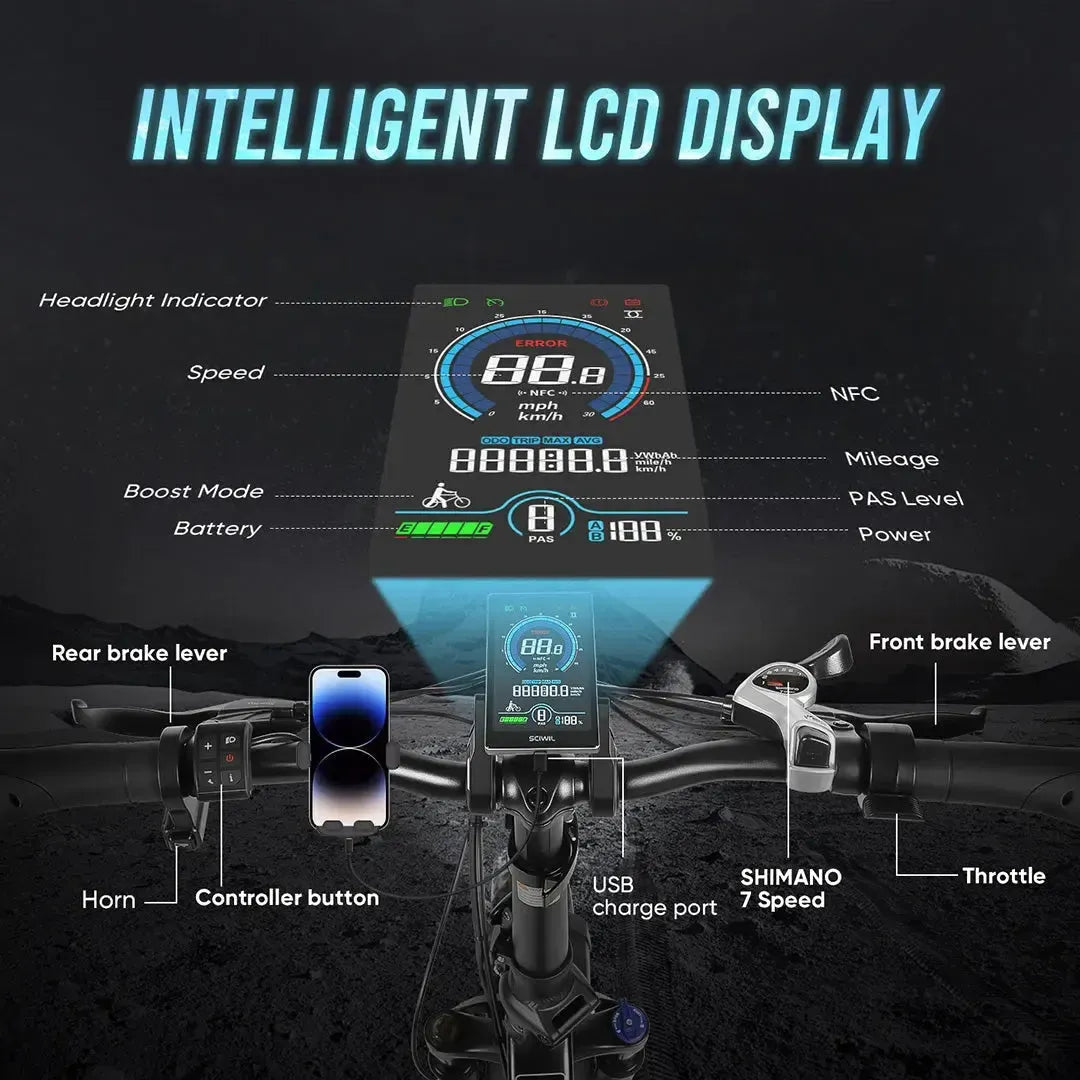

• Display: LCD screen showing speed, PAS level, and battery life

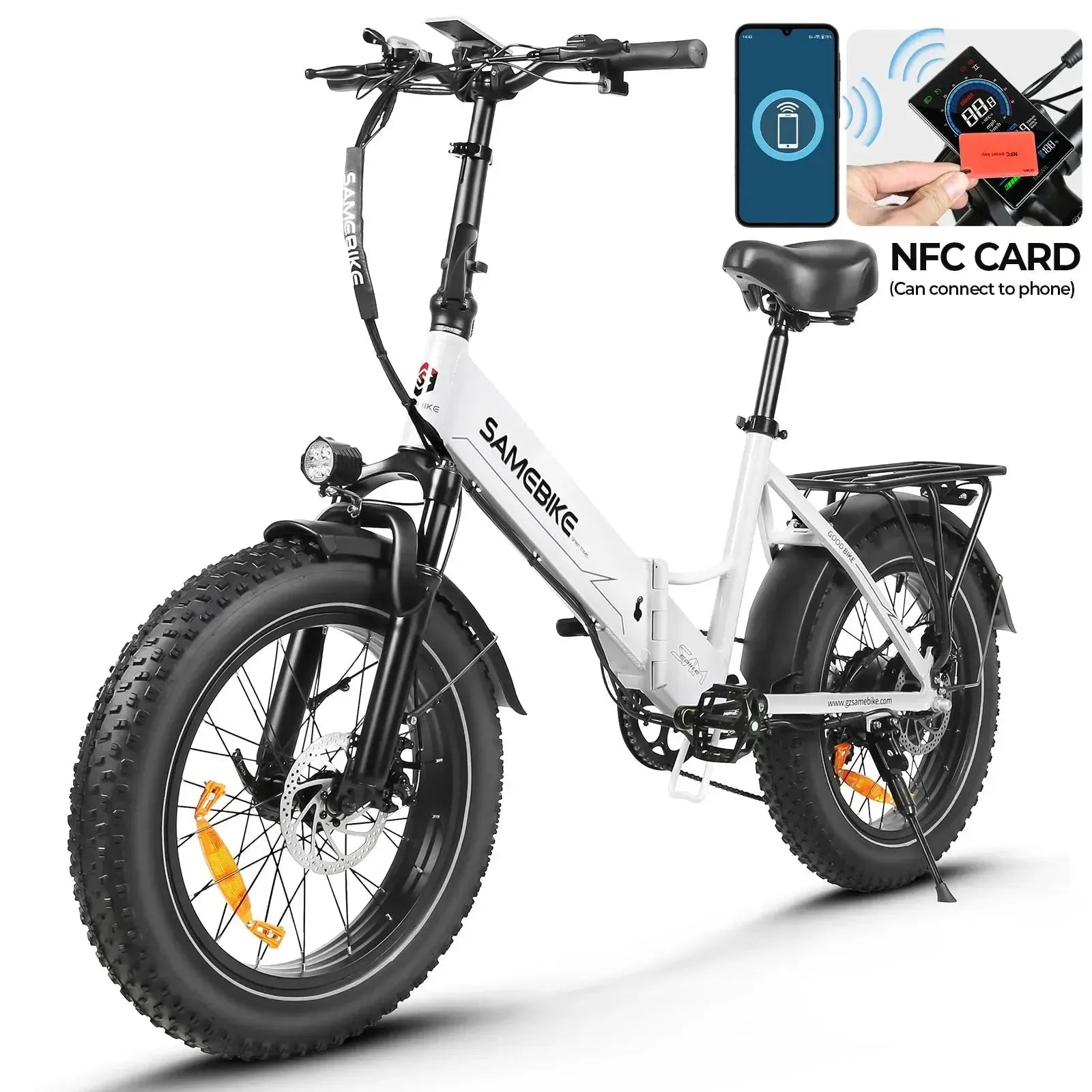

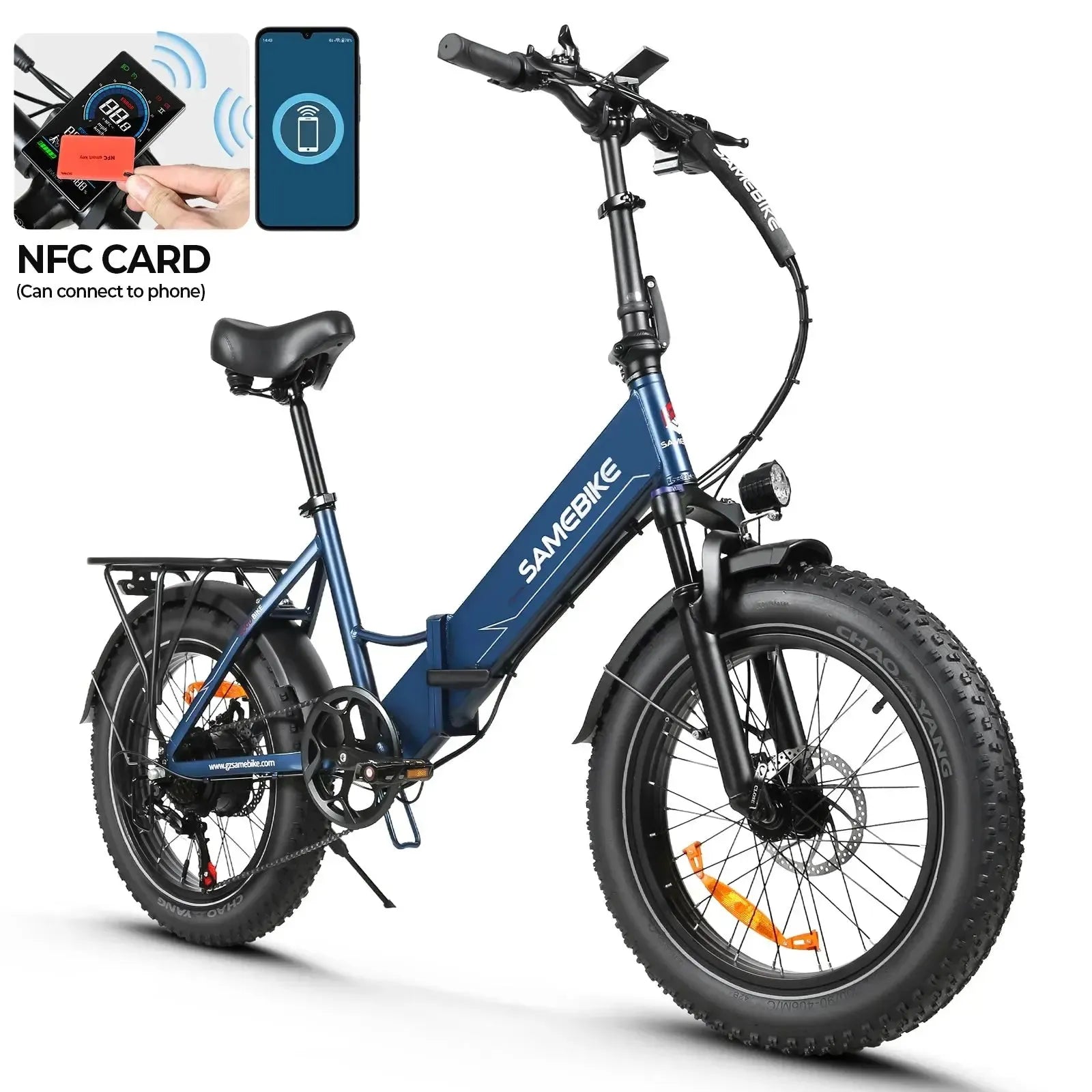

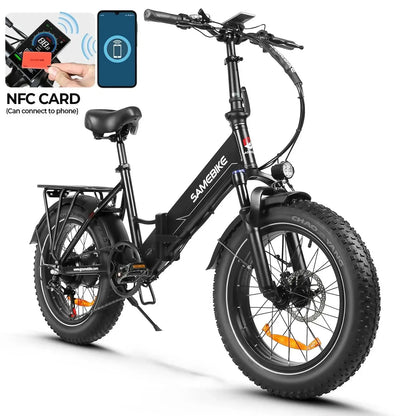

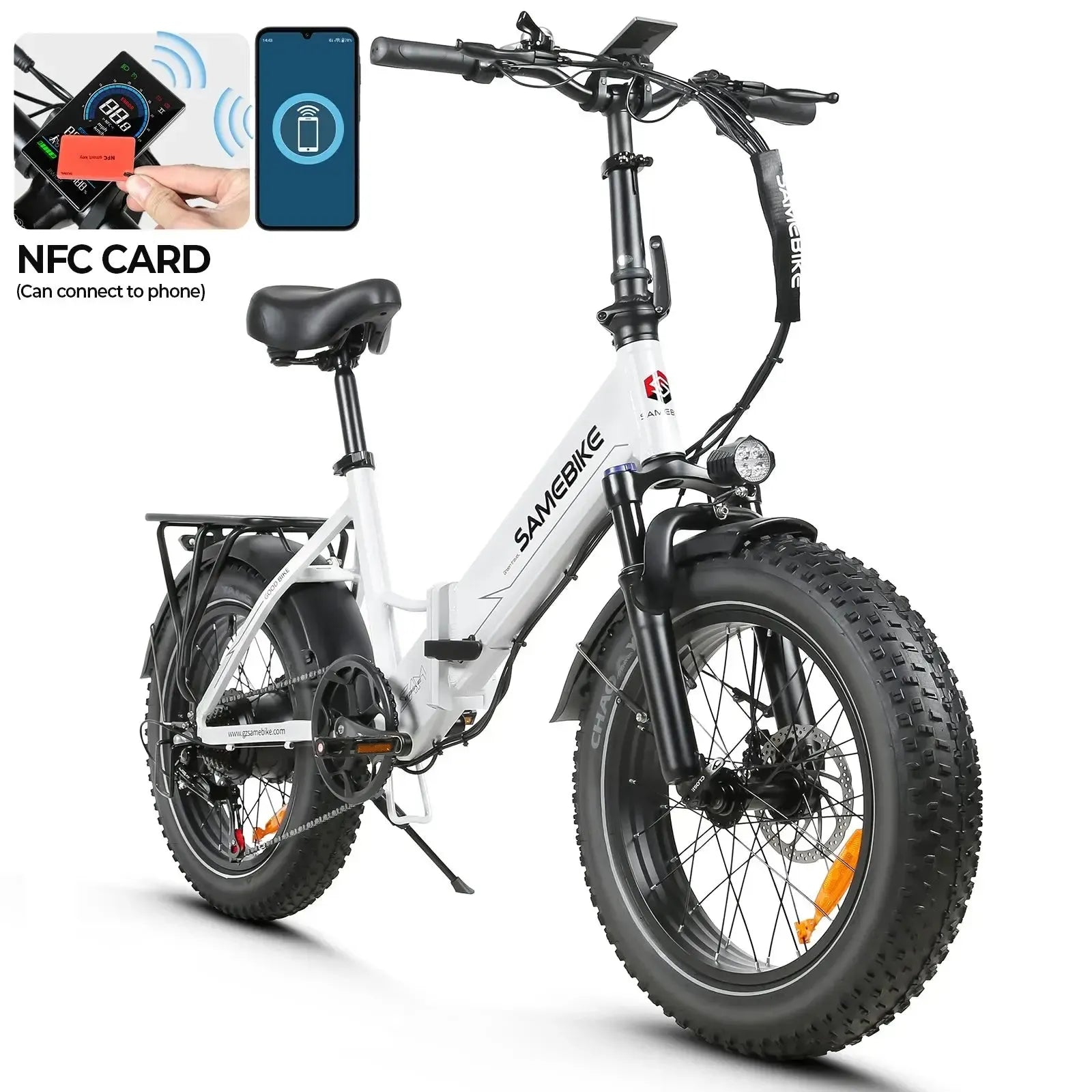

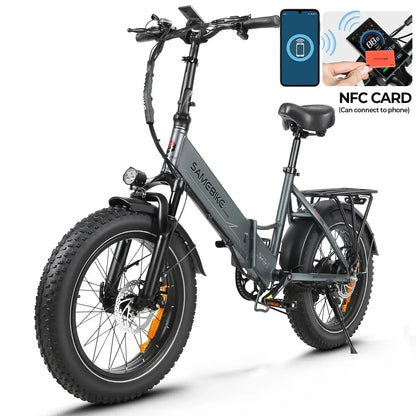

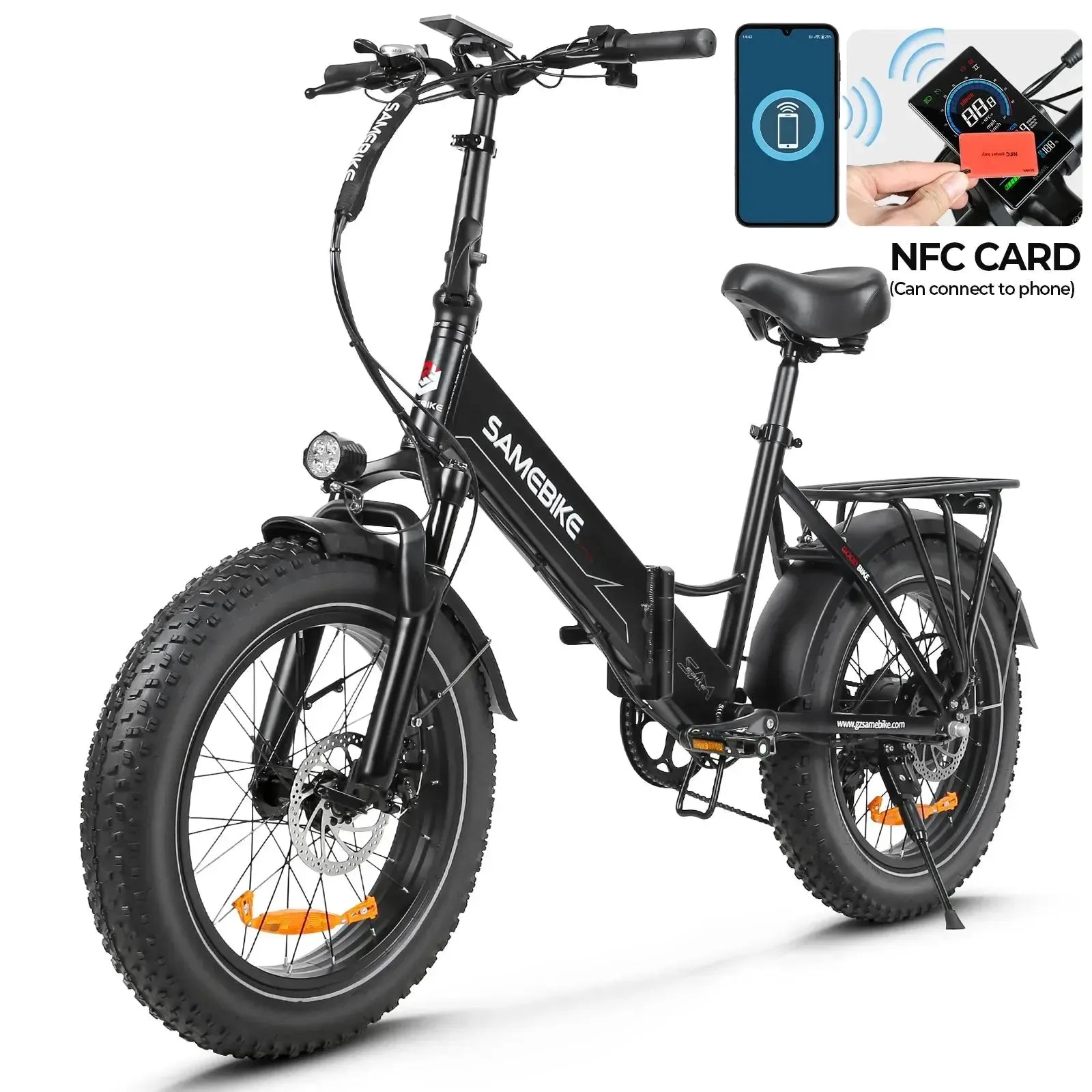

• Smart Features: NFC unlock and smart lock (select variants)

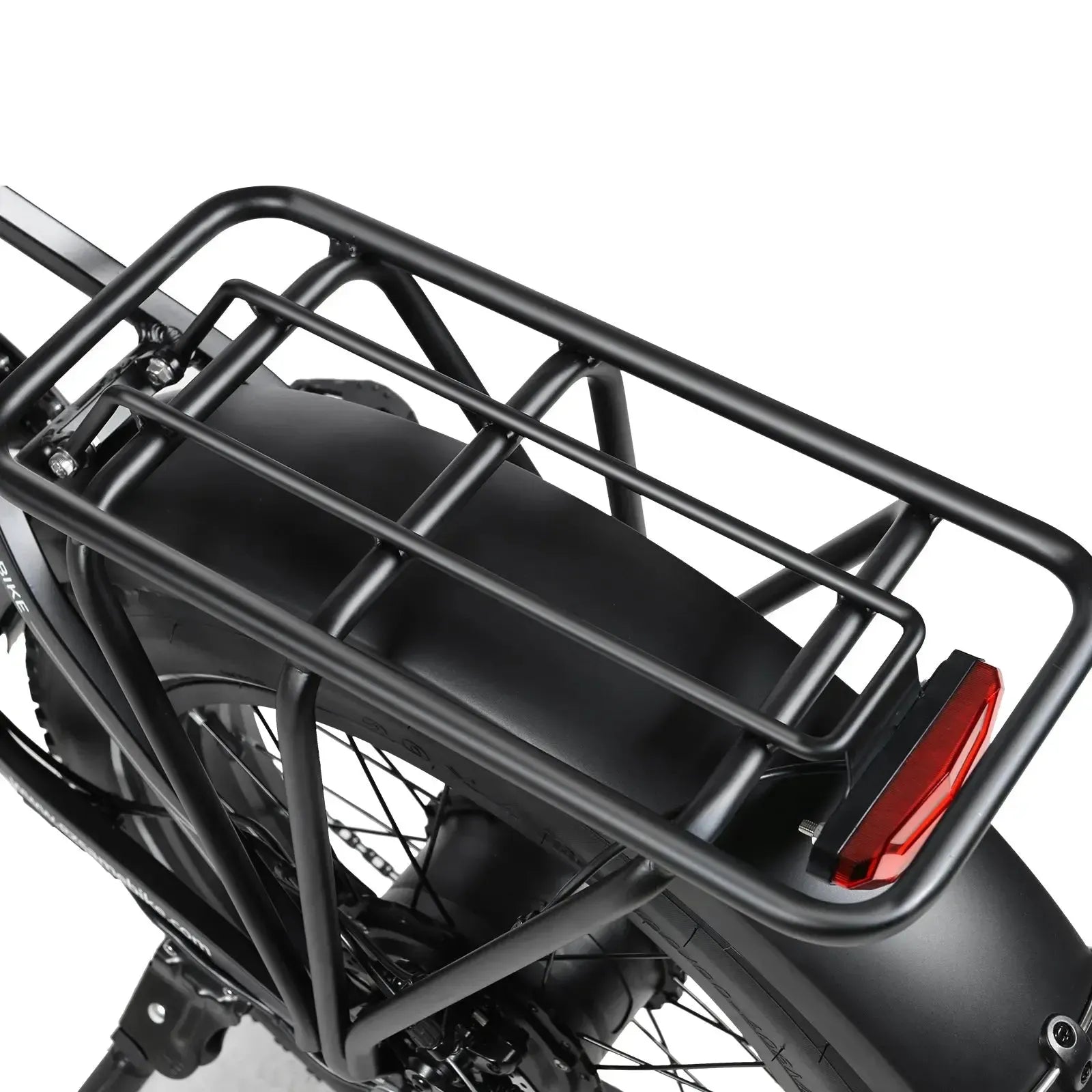

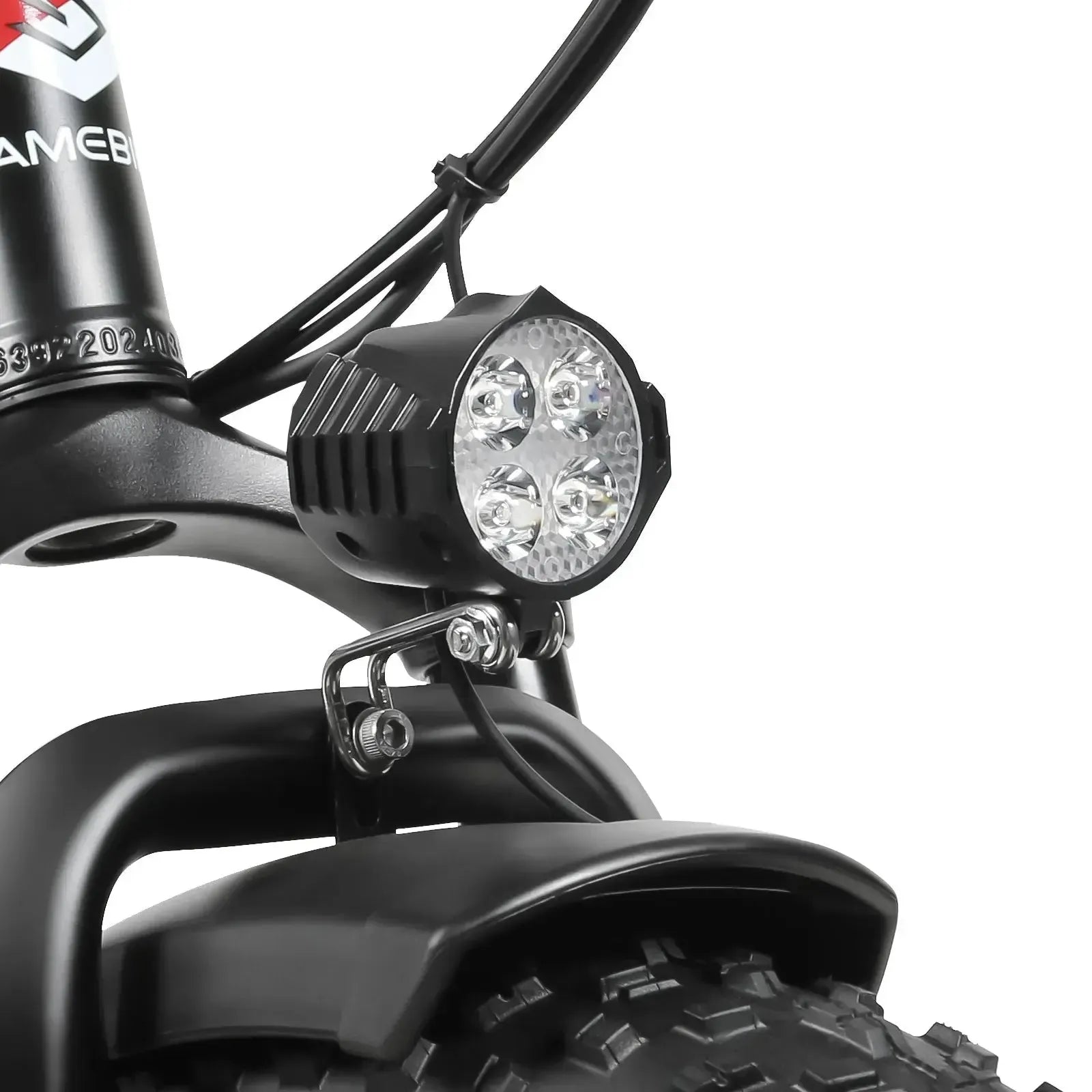

• Lighting System: Integrated LED headlight and rear brake light

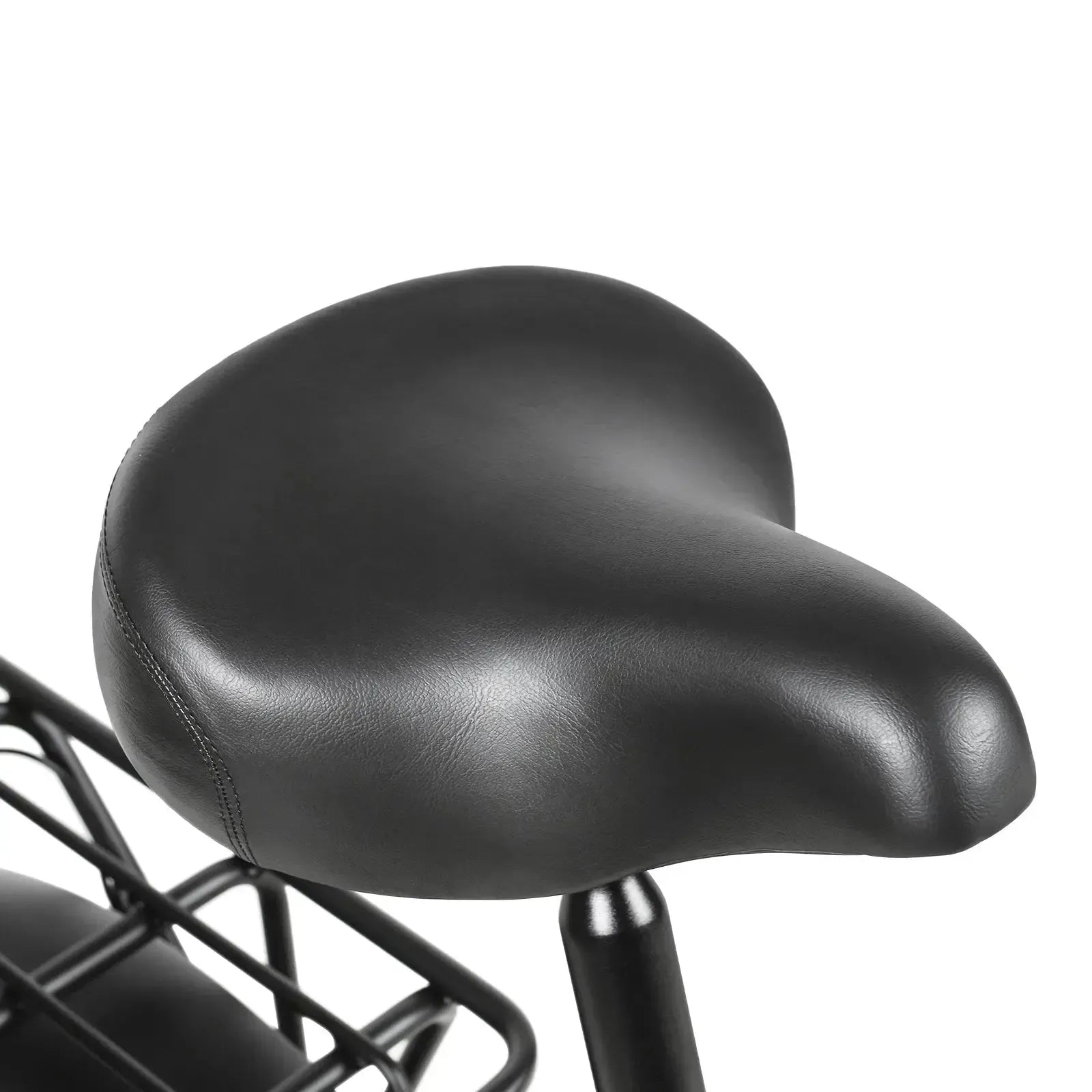

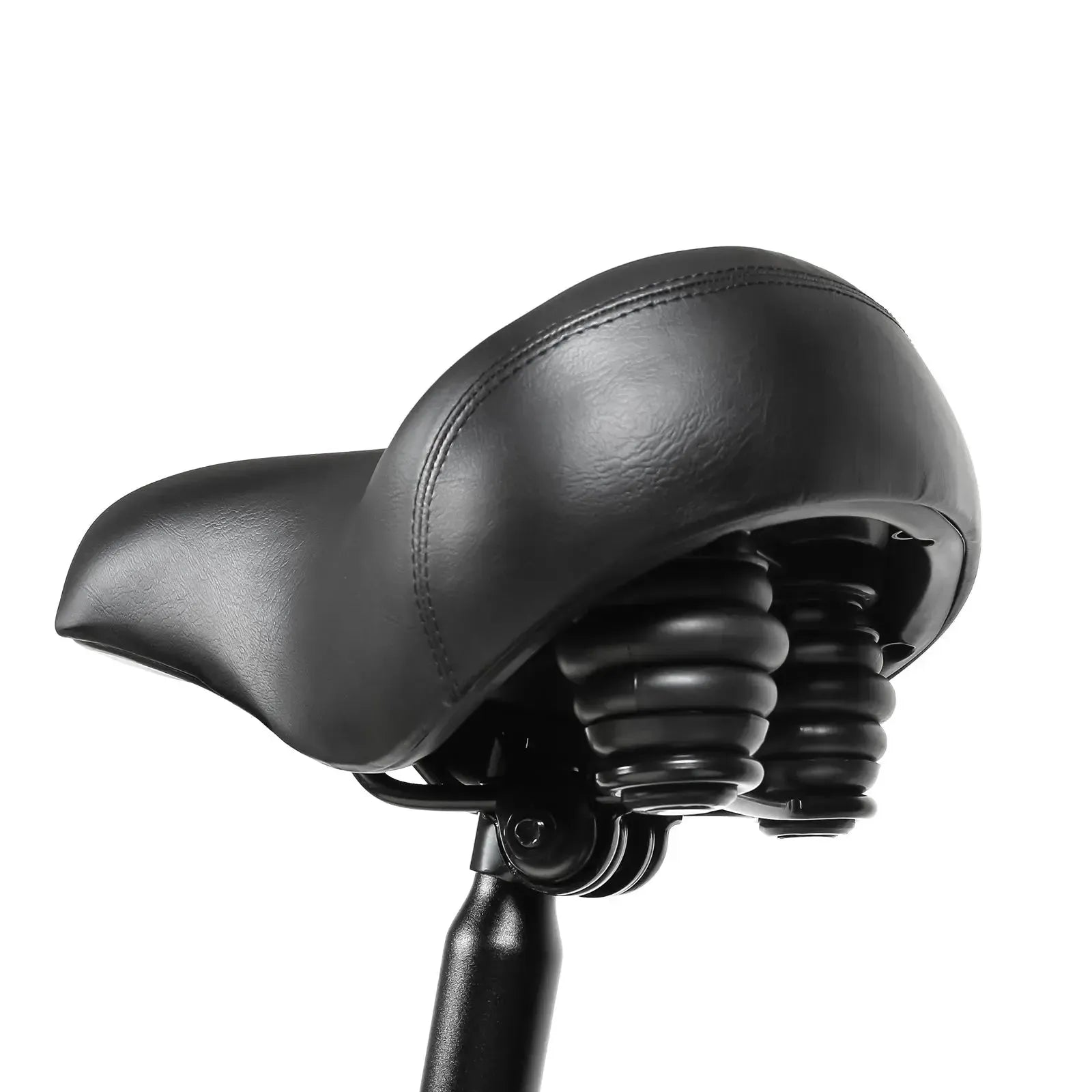

• Comfort Features: Wide saddle, ergonomic grips, and step-through frame for easy access

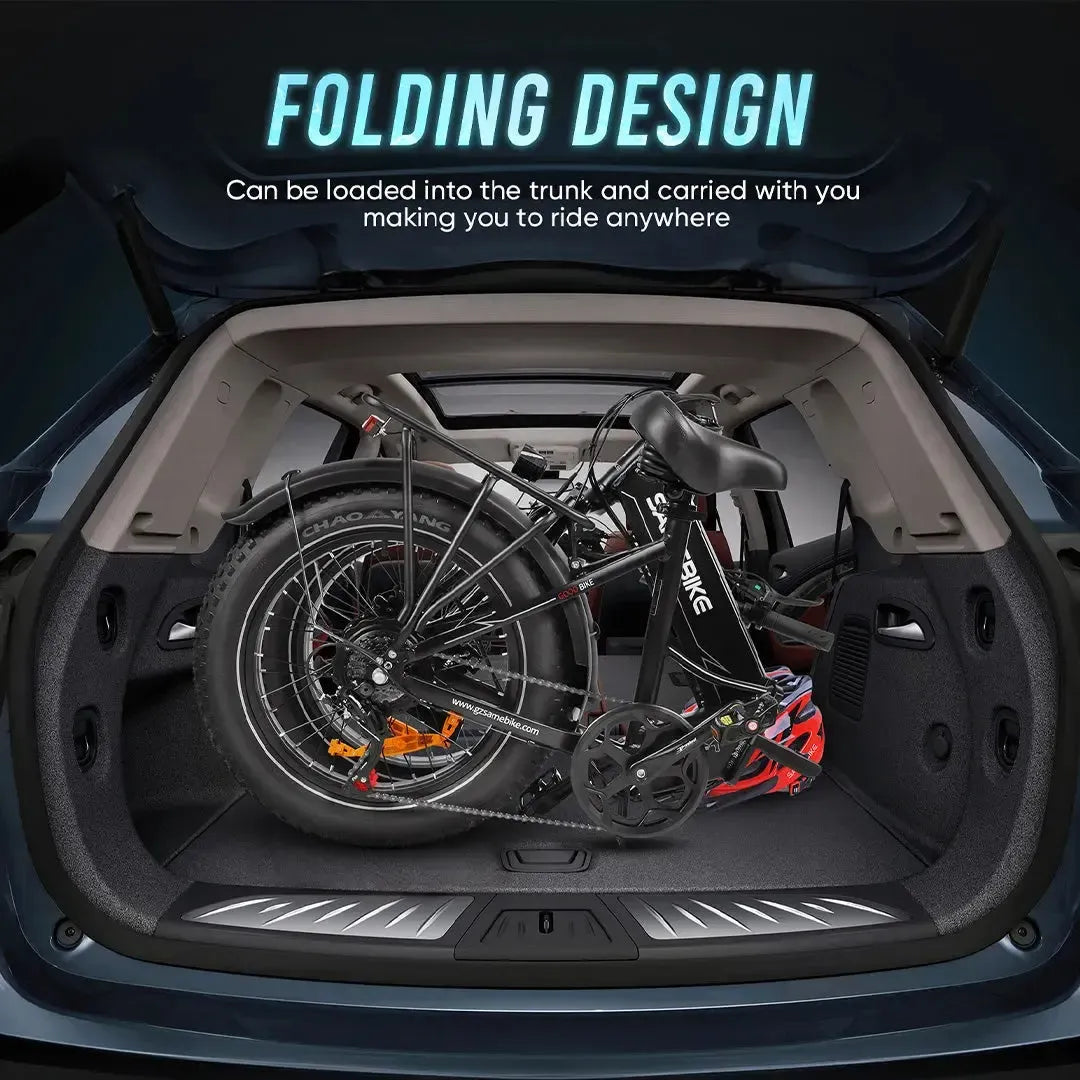

• Foldability: Compact folding system for car trunks and storage
• Accessories: Kickstand, reflectors, bell, and toolkit
• Safety Features: Dual brakes, fat tires, LED lighting, and reinforced frame

1 × SAMEBIKE LOTDM200-II

1 × Charger

1 × Tool Kit

1 × User Manual

Which motor is fitted to the SAMEBIKE LOTDM200-II?

750W brushless motor for strong acceleration and hill-climbing.

What battery does this model use?

48V 13Ah removable battery with up to 80+ km range. Actual range varies with rider load, terrain, assistance level and conditions.

How is the SAMEBIKE LOTDM200-II equipped for braking?

Mechanical disc brakes and front suspension for control and safety.

What should I know about the ride equipment?

Step-through folding frame for easy accessibility.

What comes in the box?

The listed package contains SAMEBIKE LOTDM200-II, Charger, Tool Kit, User Manual. Check the supplied manual before assembly and use.
